Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rt18-125 fuse holder 800v pv in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap rt18-125 fuse holder 800v pv from our factory.
Product Introduction

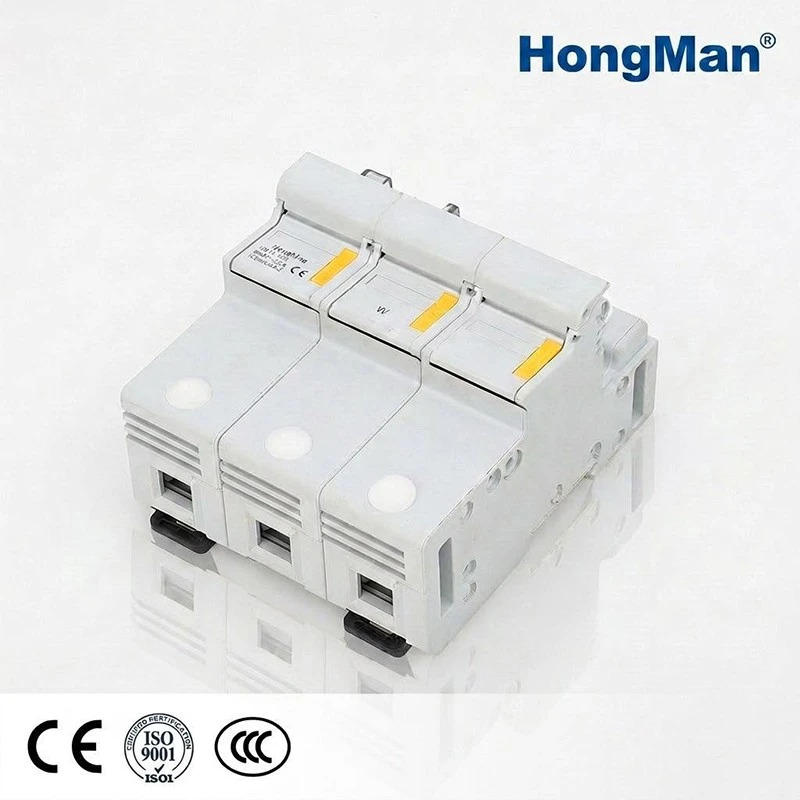

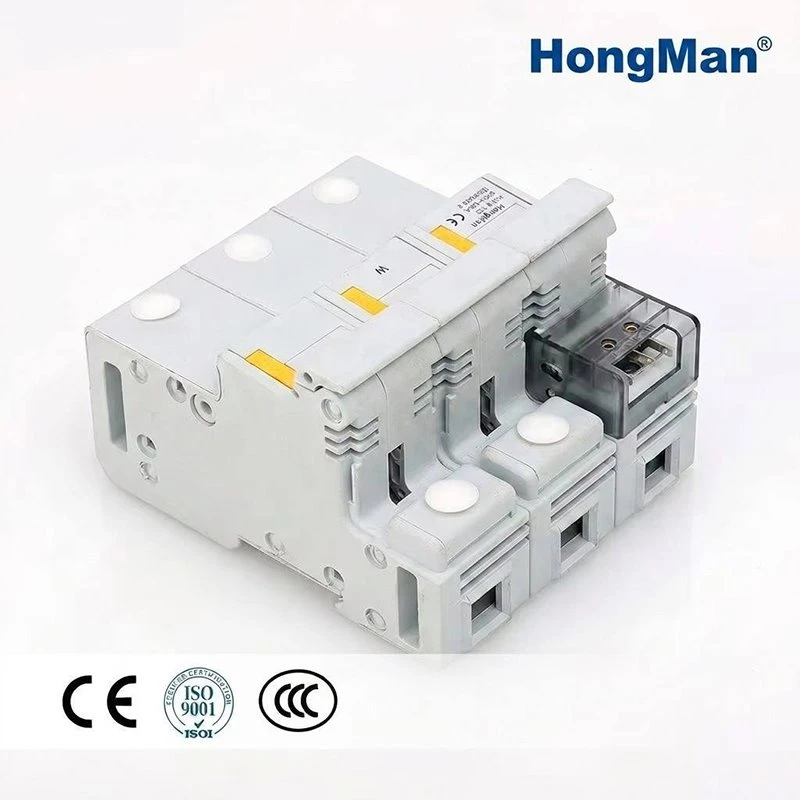

The RT18-125 W Fuse Holder is a signal-equipped DIN rail fuse base designed exclusively for PV power distribution systems, supporting quick tool-free TH35 rail installation and built-in auxiliary microswitch to feed real-time on/off position feedback signals. Compatible with full-range 0.5A–125A PV Ceramic Fuse sized 22×58mm, this RT18-125 Fuse variant fits AC500V/690V/800V/1000V/1140V low-voltage circuits, widely deployed in PV combiner boxes, energy storage cabinets and industrial automation control panels. Constructed with high flame-retardant PA66 housing and integrated thick pure copper conductive parts, the position signal module of this RT18-125 Fuse works stably under long full-load operation. It can remotely transmit circuit open/closed status to monitoring PLCs, eliminating manual cabinet inspection and greatly improving operation efficiency for large-scale solar stations, while maintaining perfect matching performance with all standard PV Ceramic Fuse models.
Product Parameter
|
Item |
Professional Specification Data |
|
Full Model |
RT18-125W Fuse Holder with On/Off Position Signal |
|
Matched Fuse |
22×58mm PV Ceramic Fuse (0.5A~125A full current series) |
|
Adapted Rated Voltage |
AC500V / AC690V / AC800V / AC1000V / AC1140V |
|
Max Rated Thermal Current |
125A (Standard frame of RT18-125 Fuse) |
|
Optional Pole Configurations |
1P / 2P / 3P / 4P |
|
Shell Material |
UL94-V0 high flame retardant PA66 engineering plastic |
|
Conductive Component |
Integrated thickened pure copper strip, ultra-low contact resistance |
|
Core Feature |
Built-in auxiliary microswitch for real circuit position signal output |
|
Matching Breaking Capacity |
Up to 80kA when paired with standard PV Ceramic Fuse |
|
Utilization Category |
gG |
|
Executive Standard |
IEC60269-2, GB/T 13539.2 |
|
Certifications |
CE, ISO9001, RoHS |
|
Mounting Standard |
TH35 DIN rail plug-and-play installation |
|
Allowable Working Environment |
-40℃ ~ +60℃, Pollution Grade 3, Installation Category III |
|
Typical Applications |
800V PV combiner boxes, industrial energy storage cabinets, UPS, frequency converter control systems |
Product Advantage
Unique Built-In Position Signal Function, Exclusive RT18-125 Fuse W Variant Different from ordinary RT18-125 Fuse without signal, this RT18W-125 holder integrates precision auxiliary microswitch. It outputs reliable on/off state signals to remote monitoring systems, enabling unattended operation of PV stations and avoiding frequent manual cabinet opening to check PV Ceramic Fuse circuit status.
High Safety Flame Retardant & Low-Temperature Rise Design Heat-resistant PA66 insulating shell resists deformation under continuous high ambient temperature. Thick pure copper conductive structure of this RT18-125 Fuse minimizes power loss, no hidden overheating risks even when matched with high-current PV Ceramic Fuse for long-term full-load running.
Standard DIN Rail Modular Maintenance Snap-on TH35 rail installation without tools; only replace damaged PV Ceramic Fuse after faults. The RT18W-125 base can be reused for many years, effectively cutting spare part procurement and labor costs for medium & large photovoltaic projects.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Standard Export Packaging: Fuse link is placed inside a separate inner box, then packed in reinforced shockproof outer export carton for ceramic component protection
Professional After-Sales Service: Complete CE, RoHS official test reports provided for customs clearance and overseas project bidding; 1-year full quality warranty for all RT18-125 fuse holders, free electrical selection technical guide for Low Voltage Fuse and PV Fuse system matching
FAQ
Q1: Can this RT18W-125 Fuse Holder transmit real-time circuit position signals for PV systems?
A1: Yes. As a signal version of RT18-125 Fuse, it has a built-in microswitch that outputs accurate on/off signals to PLC monitoring devices, so operators can remotely check the working state of PV Ceramic Fuse without opening distribution cabinets.
Q2: What is the maximum allowable working voltage of this position signal fuse base in solar cabinets?
A2: It supports up to AC1140V rated voltage, fully meeting the safety requirements of 800V PV power circuits when matched with standard PV Ceramic Fuse.
Q3: Does the auxiliary position signal component have long-term anti-vibration performance?
A3: The signal microswitch passes vibration aging testing, maintaining stable signal output after years of continuous operation with the RT18-125 Fuse and PV Ceramic Fuse in PV stations.
