Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of hrc ac 800v automotive solar fuse holder in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap hrc ac 800v automotive solar fuse holder from our factory.
Product Introduction

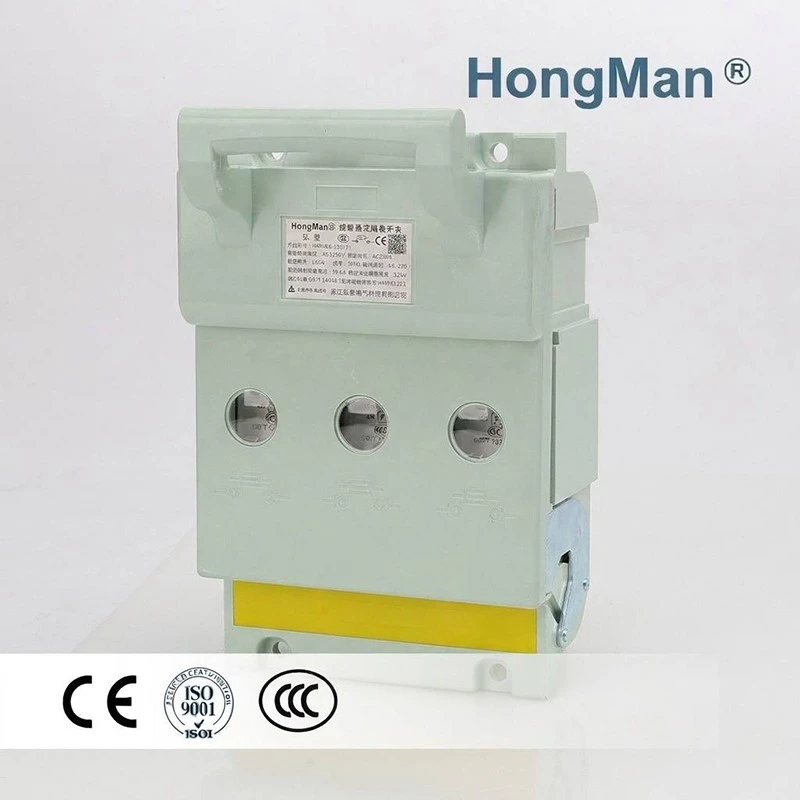

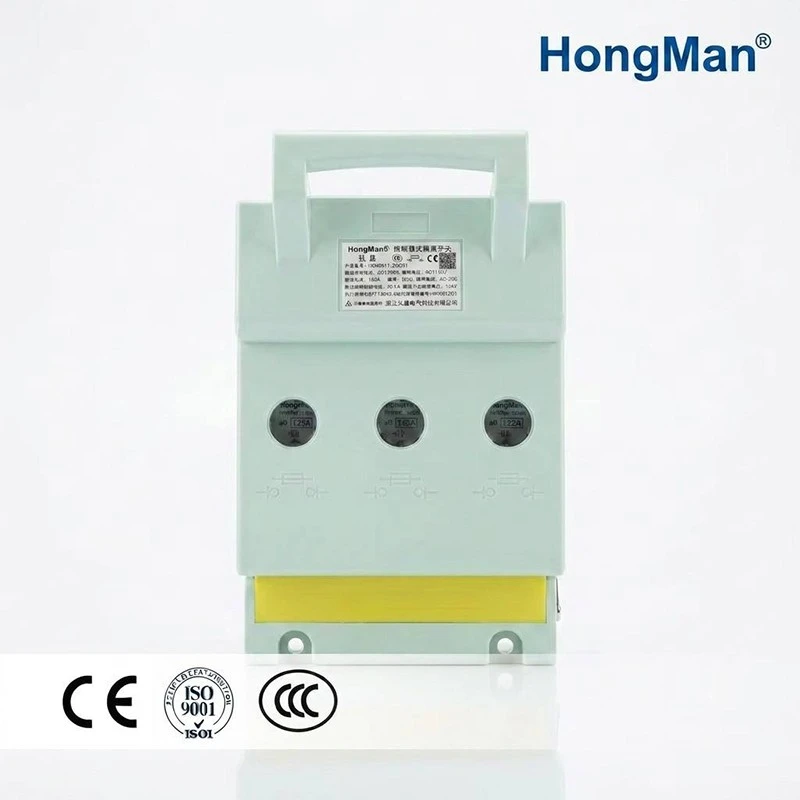

The signal-type HRC Ceramic Fuse base is specially developed for new energy vehicle cabinets and 800V photovoltaic AC distribution systems. As dedicated PV solar Fuse base with built-in auxiliary microswitch, it can upload circuit on-off status to PLC remote monitoring system.
Product Parameter
|
Item |
Professional Specification Data |
|
Full Model |
HRC AC 800V Automotive Solar Fuse Holder (Signal Type) |
|
Matched Fuse |
NT FUSE |
|
Applicable Current |
0.5A ~ 690A full in-stock range |
|
Rated AC Voltage |
DC 800V |
|
Rated Breaking Capacity |
AC500V: 120kA; AC690V: 50kA |
|
Unique Configuration |
Built-in on/off position auxiliary signal microswitch |
|
Standard Poles |
3P |
|
Shell Material |
UL94-V0 flame retardant ceramic composite PA66 |
|
Conductive Parts |
Integrated thickened pure copper strip, ultra-low AC contact resistance |
|
Standard Category |
HRC Ceramic Fuse base for PV & EV dual usage |
|
Executive Standard |
IEC60269-2 |
|
Global Certifications |
CE, ISO9001, RoHS |
|
Working Environment |
-40℃ ~ +60℃, Pollution Grade 3, Installation Category III, Altitude ≤2000m |
|
Dual Application |
On-board new energy equipment, 800V PV AC combiner cabinet |
Product Advantage
Signal Feedback HRC Ceramic Fuse base For Unattended Energy Station Different from ordinary non-signal fuse base, this PV solar Fuse base integrates precision auxiliary microswitch. Real-time circuit state signal output via the Ceramic 800V PV Fuse base supports remote cloud monitoring, suitable for large centralized solar farms and unmanned vehicle energy stations.
HRC High Breaking Ceramic Insulation Structure The ceramic composite shell of this Ceramic 800V PV Fuse base isolates high-energy AC short-circuit arcs effectively. Thick copper clamping frame of HRC Ceramic Fuse base provides stable holding force for all sizes of ceramic solar fuses, low temperature rise under long full-load & vehicle vibration working conditions.
Modular Low O&M Design Extend Service Life Split structure of base and ceramic fuse; only blown fuse needs replacement after faults. The Ceramic 800V PV Fuse base can be reused for 8~10 years, cutting long-term spare parts cost of vehicle & solar energy projects.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Standard Export Packaging: Each PV solar Fuse base is packed in separate inner cartons, loaded into reinforced shockproof outer cartons to protect signal switch and ceramic housing from collision damage.
Professional After-Sales Service: Complete CE & RoHS official test reports provided for customs clearance and overseas energy project bidding; 1-year full quality warranty, free layout & signal wiring matching guide for HRC Ceramic Fuse base and Ceramic 800V PV Fuse base.
FAQ
Q1: Can this Ceramic 800V PV Fuse base transmit circuit position signal to PLC? A1: Yes, built-in precision auxiliary microswitch inside this HRC Ceramic Fuse base, it can feed on/off state back to remote PLC monitoring system.
Q2: Does this PV solar Fuse base require current derating at high altitude PV power stations?
A2: Follow IEC standard: derate working current 0.5% per 100m above 2000m to avoid overheating of Ceramic 800V PV Fuse base and matched ceramic fuse.
Q3: Is this signal-type HRC Ceramic Fuse base vibration-resistant for vehicle cabinets?
A3: Pass 500h anti-vibration aging test, internal elastic clip of PV solar Fuse base prevents loose contact under bumpy vehicle operating environment.
