Product Introduction

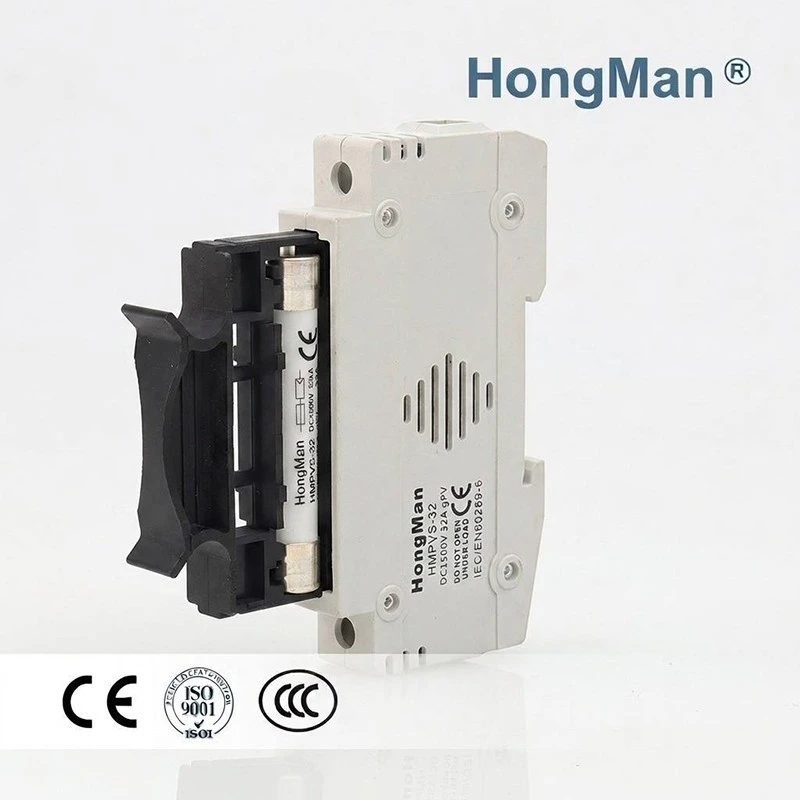

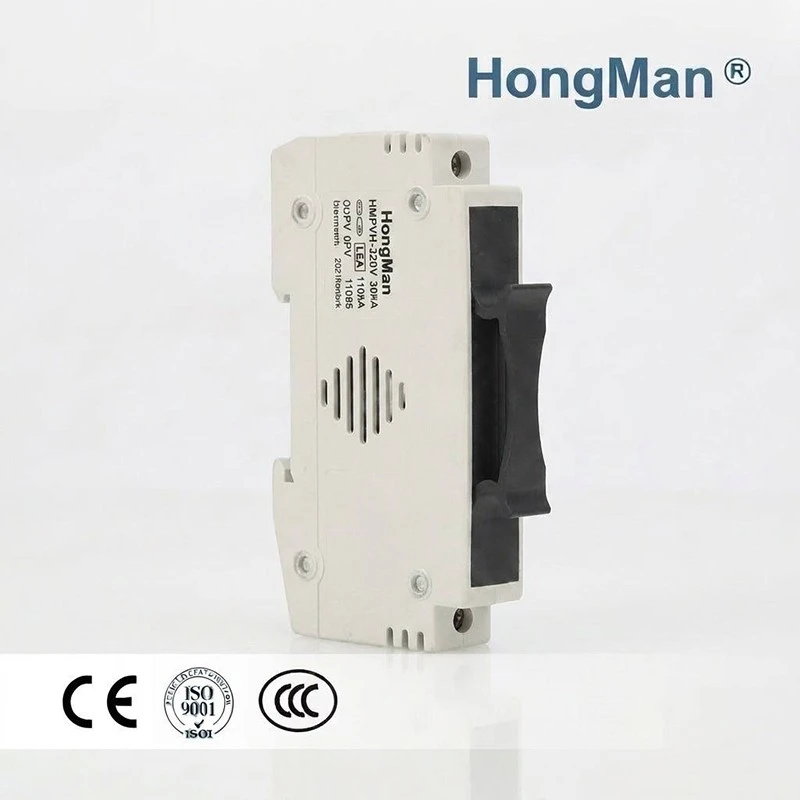

PVH-32 is compact DC DIN Rail Fuse Holder customized for 1500V DC small-power photovoltaic string combiner boxes, perfectly matched with standard 10×65mm gPV cylindrical fuse links, and the mainstream 32A Fuse Holder for miniature PV cabinet layout. This 10x65mm PV Fuse Holder adopts UL94-V0 flame retardant PA6 integrated insulating housing and thickened one-piece pure copper conductive bracket, specially optimized for long-time unstable DC output of solar modules. It complies fully with EN/IEC60269-6 gPV photovoltaic DC standard, supports full current range 2A~32A, and can be matched with fuses up to 33kA DC breaking capacity. TH35 snap-on mounting realizes tool-free quick fuse replacement, widely applied for rooftop distributed PV, small ground solar stations and portable energy storage DC cabinets.
Product Parameter
|
Item |
Professional Specification Data |
|
Full Model |
HMPVH-32 1500VDC 32A Solar PV DIN Rail Fuse Holder |
|
Matching Fuse Size |
10mm Diameter × 65mm Length gPV DC fuse link |
|
Applicable Fuse Current |
2A ~ 32A full in-stock series |
|
Rated DC Working Voltage |
1500V DC |
|
Max Matched DC Breaking Capacity |
33kA |
|
Pole Design |
Single pole dedicated for PV DC circuits |
|
Shell Material |
UL94-V0 high flame retardant PA66 engineering plastic |
|
Conductive Parts |
Integrated thickened pure copper strip, ultra-low DC contact resistance |
|
Matching Category |
gPV (Exclusive overcurrent protection for PV DC loops) |
|
Executive Standard |
EN/IEC60269-6 |
|
Global Certifications |
CE, ISO9001, RoHS |
|
Mounting Standard |
TH35 standard DIN rail plug-and-play installation |
|
Applicable Wire Cross-Section |
1.5 ~ 35 mm² |
|
Working Environment |
-40℃ ~ +60℃, Pollution Grade 3, Installation Category III, Altitude ≤2000m |
|
Core Application |
Mini 1500V DC PV combiner boxes, rooftop distributed solar, small ground PV power plants, portable energy storage DC cabinets |
Product Advantage
High Cost-Performance Universal Base for Mini PV Retrofit Works Boasting full compatibility with the complete 2A–32A range of 10×65 gPV solar fuse cartridges, this DC DIN Rail Fuse Holder features standardized DIN rail overall dimensions. When carrying out old PV cabinet renovation, it can directly replace any outdated 10x65mm PV Fuse Holder without extra cutting, drilling or cabinet rework, slashing on-site construction labor and modification expenses for EPC contractors.
Economical Modular Structure to Lower Long-Term Solar Operating Expenses Adopting a split modular layout separating the base body and gPV fuse link, this 32A Fuse Holder only requires replacement of the blown fuse element once short-circuit faults occur. The main fuse base boasts a service lifespan of 8 to 10 years with stable performance, avoiding frequent full set replacements. For small distributed solar plants, it drastically reduces recurring spare part procurement budgets and delivers outstanding long-term cost performance compared to inferior integrated fuse assemblies.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Standard Export Packaging: Fuse link is placed inside a separate inner box, then packed in reinforced shockproof outer export carton for ceramic component protection
Professional After-Sales Service: Complete CE & RoHS official test reports provided for customs clearance and overseas solar tendering; 1-year full quality warranty, free layout matching guide for 32A Fuse Holder and DC DIN Rail Fuse Holder.
FAQ
Q1: What cost advantages can this 10x65mm PV Fuse Holder bring to small PV EPC projects?
A1: This DC DIN Rail Fuse Holder adopts reusable split structure, service life up to 8-10 years. Only the blown gPV fuse needs replacement instead of the whole base, greatly cutting long-term spare parts budget for this 32A Fuse Holder.
Q2: What official certificates can you provide for overseas solar tender bidding?
A2: Complete CE, IEC60269-6, ISO9001 and RoHS test reports are supplied for this 10x65mm PV Fuse Holder. All certification files of this DC DIN Rail Fuse Holder support customs clearance and global PV project tender review.
Q3: Does this 32A Fuse Holder support dense side-by-side arrangement inside narrow mini combiner boxes?
A3: Slim narrow-body design of the 10x65mm PV Fuse Holder allows dense parallel installation. This DC DIN Rail Fuse Holder maximizes cabinet internal wiring space for compact 1500V DC PV equipment.
Q4: What wire cross-section range is compatible with this DC DIN Rail Fuse Holder?
A4: This 32A Fuse Holder supports 1.5mm² ~ 35mm² copper cables, fully covering the wiring specification requirements of residential and small commercial 1500V PV combiner boxes using the 10x65mm PV Fuse Holder.
