Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 800v solar fuse base in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap 800v solar fuse base from our factory.
Product Introduction

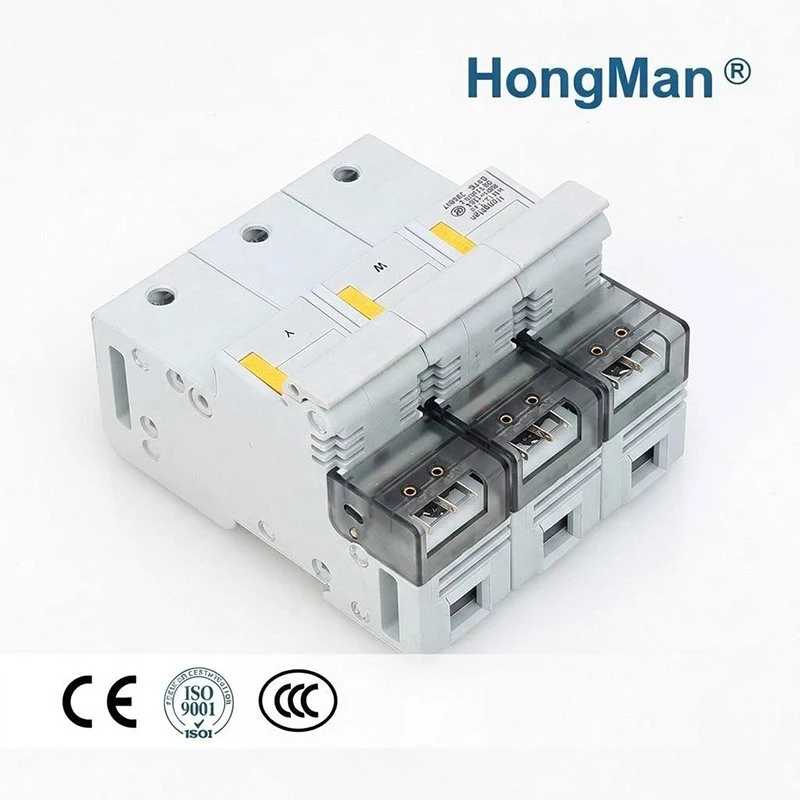

The RT18WY-125 dual-signal base is upgraded intelligent 800V Fuse holder developed for 800V photovoltaic AC distribution systems. This integrated Ceramic Solar Fuse base integrates two core monitoring structures: transparent anti-fog observation window for fuse blown visual alarm (Y function) and built-in auxiliary microswitch for circuit on-off remote position signal (W function).
Product Parameter
|
Item |
Professional Specification Data |
|
Full Model |
RT18WY-125 800V Solar Fuse Base Dual Signal Type |
|
Product Category |
800V Fuse holder / Ceramic Solar Fuse base |
|
Matched Fuse |
22×58mm HM18Y blown-indicator ceramic fuse link |
|
Applicable Current Range |
0.5A ~ 125A full stock series |
|
Rated Working Voltage |
AC500 / 690 / 800 / 1000 / 1140V (800V PV mainstream voltage) |
|
Max Matching Breaking Capacity |
80kA |
|
Optional Poles |
1P / 2P / 3P / 4P |
|
Shell Material |
UL94-V0 high flame retardant PA66 engineering plastic |
|
Conductive Parts |
Integrated thickened pure copper strip, ultra-low contact resistance |
|
Dual Unique Functions |
1. Transparent anti-fog window for blown fuse visual prompt (Y); 2. Built-in microswitch for circuit position remote signal (W) |
|
Executive Standard |
IEC60269-2, GB/T 13539.2 |
|
Global Certifications |
CE, ISO9001, RoHS |
|
Mounting Mode |
TH35 standard DIN rail snap-on installation |
|
Applicable Wire Cross-Section |
1.5 ~ 50 mm² |
|
Working Condition |
-40℃ ~ +60℃, Pollution Grade 3, Installation Category III, Altitude ≤2000m |
|
Core Application |
Intelligent 800V PV combiner boxes, industrial energy storage AC distribution cabinets |
Product Advantage
It perfectly matches full-range 0.5A~125A HM18Y ceramic PV fuse links with 22×58mm dimension. Adopting UL94-V0 flame retardant PA66 housing and one-piece thick pure copper conductive frame, this 800V Fuse holder complies with IEC60269-2 & GB/T 13539.2 standards, supporting max 80kA breaking capacity when matched with gG ceramic fuses. Dual signal design realizes on-site manual inspection + unattended PLC remote monitoring, widely applied in intelligent PV combiner boxes and industrial energy storage AC cabinets.
Exclusive Dual-Signal Integrated 800V Fuse holder Different from single W position-signal or single Y viewing-window base, this all-in-one Ceramic Solar Fuse base carries two independent monitoring modules simultaneously. Technicians quickly judge blown fuses via the window without opening cabinet doors; meanwhile, the internal microswitch uploads circuit state to remote control platform, one base meets manual inspection & unmanned PV station monitoring dual demands.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Standard Export Packaging: Fuse link is placed inside a separate inner box, then packed in reinforced shockproof outer export carton for ceramic component protection
Professional After-Sales Service: Complete CE, RoHS official test reports provided for customs clearance and overseas project bidding; 1-year full quality warranty for all RT18-125 fuse holders, free electrical selection technical guide for Low Voltage Fuse and PV Fuse system matching
FAQ
Q1: Which fuse link matches this dual-signal 800V Fuse holder?
A1: Only HM18Y series 22×58mm ceramic PV fuses with built-in LED blown indicator can be matched with this Ceramic Solar Fuse base to realize window visual alarm function.
Q2: Can this dual-function Ceramic Solar Fuse base be applied in intelligent 800V PV combiner boxes?
A2: Yes, this 800V Fuse base integrates both on-site visual blown prompt and remote circuit position signal output, perfectly matched with unattended photovoltaic monitoring systems.
Q3: Will the built-in microswitch lose signal after long-term high-temperature cabinet operation?
A3: The auxiliary microswitch passes high temperature & vibration aging test, the signal transmission of this Ceramic Solar Fuse base remains stable after years of continuous running inside sealed PV cabinets.
Q4: Can this dual-signal base directly replace single W/Y type 800V Fuse holder on existing PV cabinets?
A4: The whole series of Ceramic Solar Fuse base share unified outline size, this 800V Fuse holder can be installed directly without modifying cabinet mounting holes for equipment upgrading.
