Product Introduction

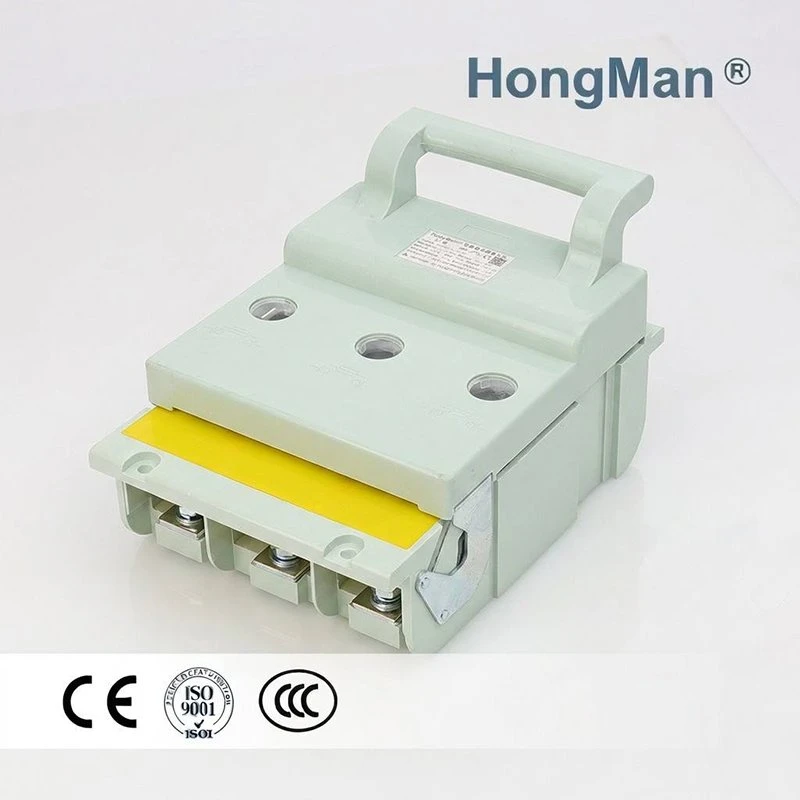

The HRC AC 800V Fuse base is 3P DIN rail mounting fuse base designed for dual scenarios of new energy vehicle on-board AC systems and 800V photovoltaic AC cabinets. As a dedicated automotive Solar Fuse holder, it adopts UL94-V0 flame retardant PA66 one-piece shell and integrated thick pure copper conductive frame, fully complying with IEC60269-2 HRC high breaking standard.
Product Parameter
|
Item |
Professional Specification Data |
|
Full Model |
HRC AC 800V Automotive Solar Fuse Holder |
|
Matched Fuse |
NT FUSE |
|
Applicable Current |
0.5A ~690A full stock range |
|
Rated AC Voltage |
DC800V |
|
Rated Breaking Capacity |
AC500V: 120kA; AC690V: 50kA |
|
Standard Poles |
3P |
|
Shell Material |
UL94-V0 flame retardant PA66 engineering plastic |
|
Conductive Component |
Integrated thickened pure copper strip, ultra-low AC contact resistance |
|
Matching Standard |
IEC60269-2 HRC high rupture capacity |
|
Certifications |
CE, ISO9001, RoHS |
|
Working Condition |
-40℃ ~ +60℃, Pollution Grade 3, Installation Category III, Altitude ≤2000m |
|
Dual Application |
EV on-board AC cabinet, 800V PV AC distribution box |
Product Advantage
Full Voltage & Full Current Compatibility Covers complete AC voltage up to 800V and 0.5~125A full current range. Unified DIN rail outline allows direct replacement of old HRC AC 800V Fuse base without cutting cabinet holes for PV & vehicle equipment upgrading.

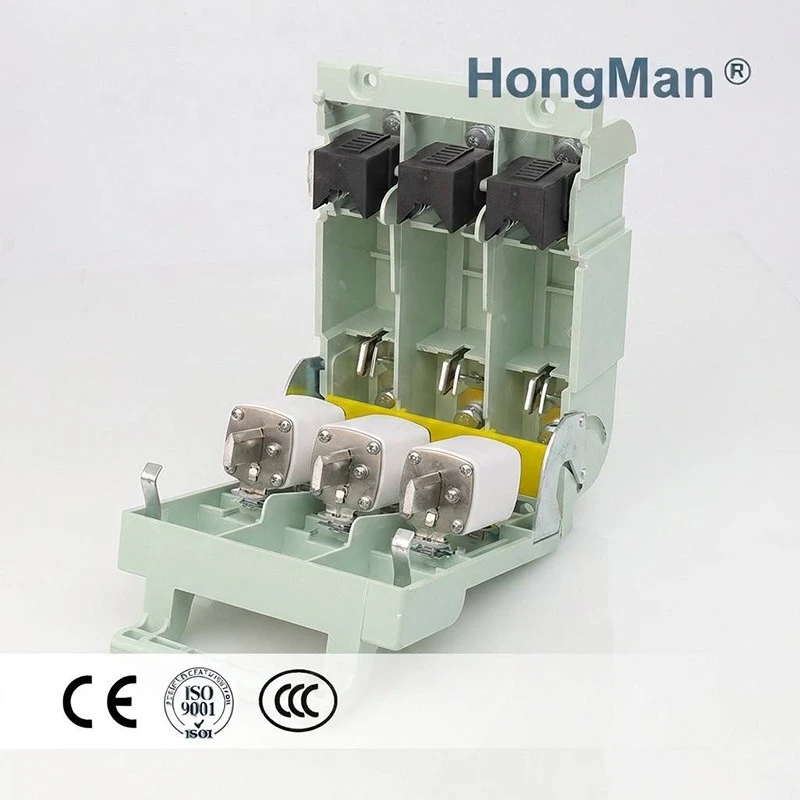

Low-Consumption Modular Maintenance Split structure of base and Solar Fuse; only blown fuse needs replacement after fault. This automotive Solar Fuse holder can be reused for 8~10 years, cutting long-term spare parts cost of energy projects.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Standard Export Packaging: Each automotive Solar Fuse holder is packed in separate inner cartons, loaded into shockproof reinforced outer cartons to prevent plastic shell scratch during long-distance transportation.
Professional Support: Complete CE & RoHS official test reports for customs clearance & overseas bidding; 1-year full quality warranty, free electrical matching layout guide for HRC AC 800V Fuse base and Solar Fuse.
FAQ
Q1: Can this automotive Solar Fuse holder be installed inside new energy vehicle power cabinets?
A1: Yes, this HRC AC 800V Fuse base passes long-time anti-vibration aging test, stable under frequent bump environment of vehicle equipment.
Q2: Is current derating required for this HRC AC 800V Fuse base at high altitude PV power stations?
A2: Follow IEC specification: derate working current by 0.5% per 100m above 2000m to prevent overheating of automotive Solar Fuse holder and matched Solar Fuse.
Q3: Does this automotive Solar Fuse holder support cabinet dense arrangement?
A3: Compact 3P narrow body design, multiple HRC AC 800V Fuse base can be arranged side by side to save cabinet internal wiring space.
