Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of nt2 ceramic fuse link in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap nt2 ceramic fuse link from our factory.
Product Introduction

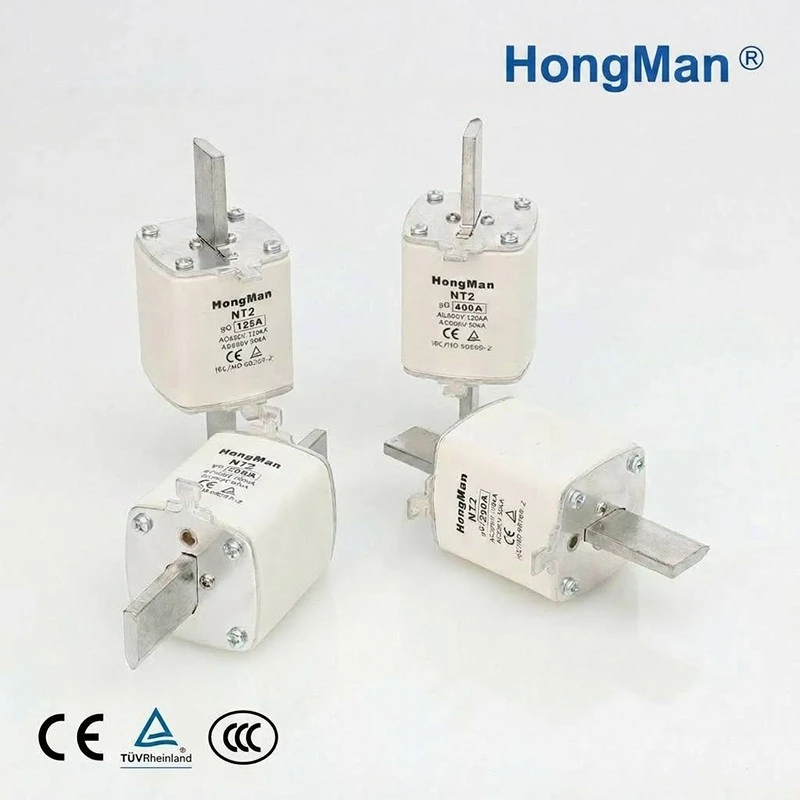

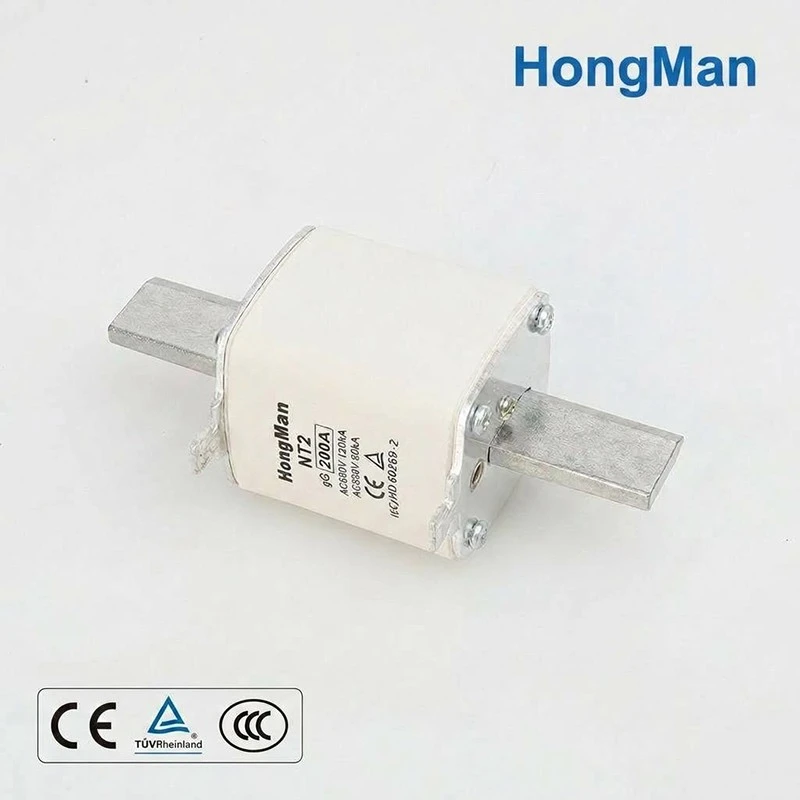

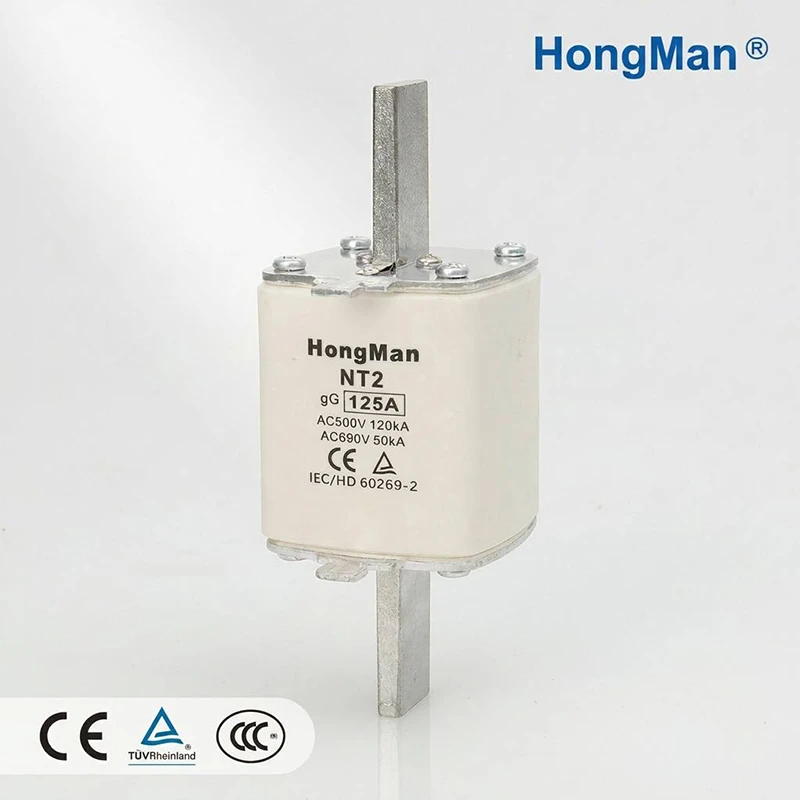

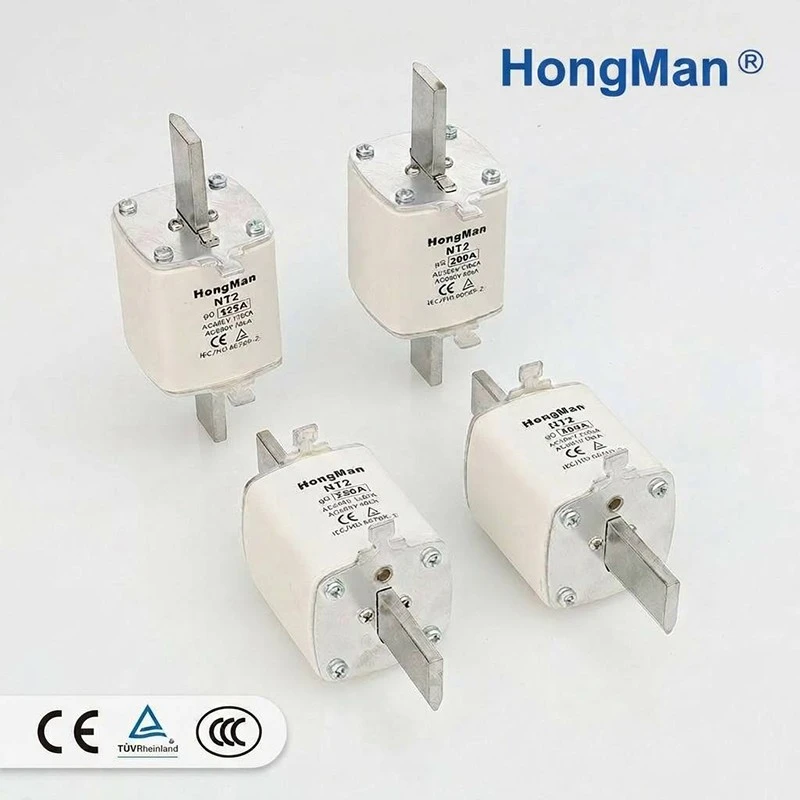

This series of Ceramic HRC Fuse Link is made of integrated high-temperature ceramic housing, which is standard AC 500V/690V NT2 Fuse Link. All models pass EU safety test certification and serve as export-compliant NT2 Fuse Link with CE Certificate. Manufactured strictly in accordance with IEC/HD 60269-2 international standard with gG general protection characteristic, it is widely applied in industrial low voltage distribution, PV energy storage power stations, high-power motor circuits, rectifier and inverter equipment.
The fuse body is filled with high-purity quartz sand for arc extinction, matched with thick Tin-plated pure copper knife blade contacts to achieve low contact resistance and low operating temperature rise. Breaking capacity reaches 120kA at AC500V and 50kA at AC690V, which can instantly cut off large short-circuit current to fully protect downstream cables and electrical equipment. Current ratings range from 125A to 400A, standardized plug-in design matches supporting NT2 fuse base for quick replacement without complete power cut, greatly saving on-site maintenance time. Our factory is equipped with full automatic fuse production line, independently controlling all procedures including element stamping, ceramic tube firing, quartz sand filling and finished aging test. Standard ratings are always in stock, we support bulk purchasing and customized OEM service for overseas switchgear manufacturers and energy storage integrators.
Product Parameter
|
Model |
NT2 Ceramic HRC Knife Blade Fuse Link |
|
Utilization Category |
gG (General dual protection for overload & short circuit of cables and switchgear) |
|
Rated Voltage |
AC 500V / AC 690V |
|
Breaking Capacity |
AC500V: 120kA; AC690V: 50kA |
|
Rated Current Ratings |
125A, 200A, 250A, 400A |
|
Housing Material |
High temperature flame retardant ceramic (Ceramic HRC insulated body) |
|
Arc Extinguishing Medium |
High purity quartz sand |
|
Contact Material |
Tin-plated pure copper, anti-oxidation & low temperature rise |
|
Standard |
IEC/HD 60269-2 |
|
Certifications |
CE, CCC, TUV, ISO, RoHS environmental certification |
|
Matching Base |
Special NT2 knife blade fuse base |
|
Application |
Large low voltage switchgear, commercial & industrial energy storage stations, high-power motors, UPS, frequency converters |

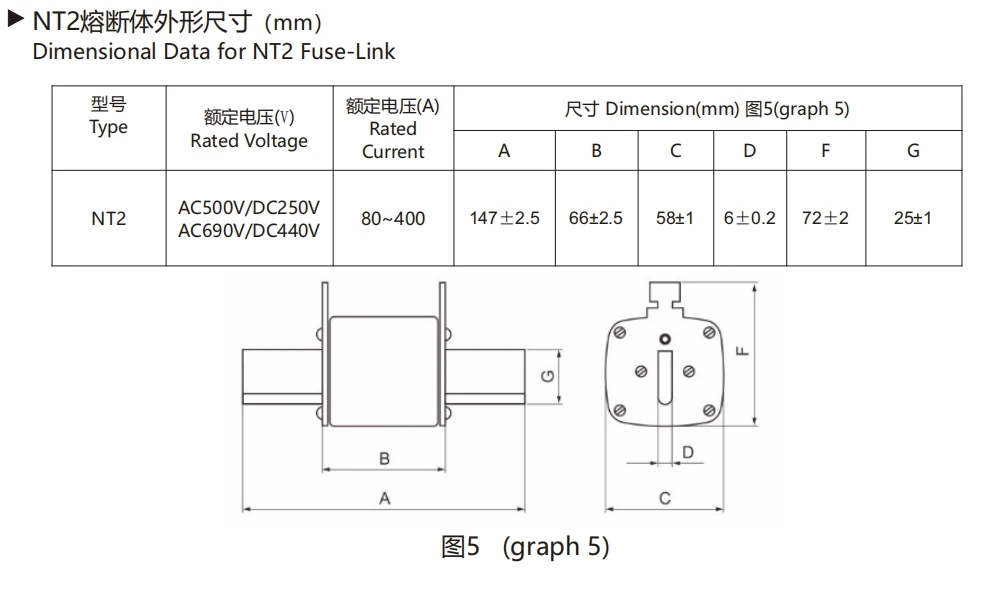

Dimensional Data for NT2 Fuse Link:
Product Qualification
Every finished Ceramic HRC Fuse Link passes strict quality inspection processes,All unqualified products are isolated and scrapped to guarantee stable and reliable performance of each fuse link delivered to market.
All series of AC 500V/690V NT2 Fuse Link adopt unified standardized outer dimensions, fully compatible with mainstream domestic and foreign NT2 fuse bases, which can directly replace imported HRC fuses of the same specification without cabinet structure modification, effectively cutting equipment supporting cost.
All delivery batches come with complete CE test reports. As formal NT2 Fuse Link with CE Certificate, they can be directly used for project bidding and customs clearance across EU countries without certification missing risks. The ceramic housing adopts 1300℃ integrated firing technology, impact-resistant and wide temperature tolerance, not easy to crack or leak electricity under high temperature & humid environment of outdoor power stations and equipment rooms.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Fast Stock Delivery: Standard NT2 fuse links are permanently in stock, orders placed before 16:00 will be shipped within 48 hours; customized orders with special current rating or printed LOGO take 7–10 working days.
Warranty Support: 18-month full product warranty,free samples offered for bulk order clients.
Customization Service: Custom LOGO printing on housing, special current rating development, one-stop supply together with NT2 fuse base to meet full purchasing demand of switchgear manufacturers.
FAQ
Q1: Can this Ceramic HRC Fuse Link be used for both 500V and 690V control cabinets?
A: Yes, this AC 500V/690V NT2 Fuse Link supports dual voltage, it can reach standard breaking protection performance under both voltage working conditions.
Q2: Are all certification documents complete for exporting to Europe?
A: Yes, every shipment is NT2 Fuse Link with CE Certificate, attached with official CE test report and RoHS certificate, which can be directly used for customs clearance and project bidding.
Q3: Do I need to replace the whole base after the NT2 fuse blows?
A: Only replace the fuse link, separate design of fuse and base. The Ceramic HRC Fuse Link is pluggable independently, the base can be reused for a long time to cut maintenance cost.
