Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of nt1 hrc fuse link in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap nt1 hrc fuse link from our factory.
Product Introduction

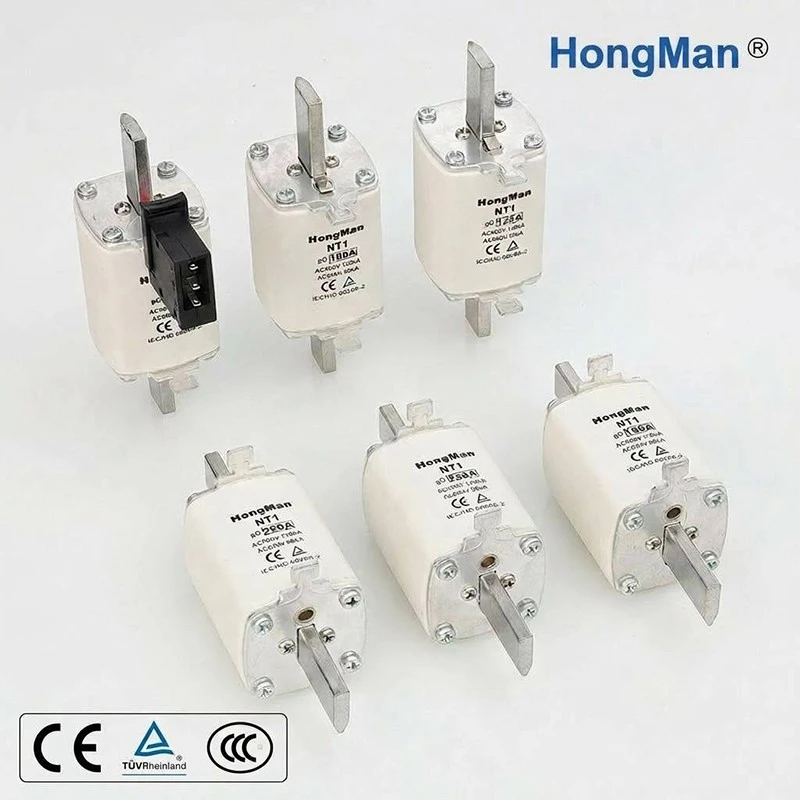

This Breaking Capacity Fuse link is standard HRC knife blade fuse link with full EU CE certification,ts dimension and melting characteristic are fully compatible with famous international brands, working as perfect NT1 fuse equivalent to Bussmann/Mersen, which can directly replace imported fuses and cut down your purchasing cost effectively.
Adopting high temperature resistant ceramic housing, high purity quartz sand arc extinguishing filler and Tin-plated pure copper knife contacts, it complies with IEC/HD 60269-2 standard with gG general protection characteristic. Rated voltage AC500V & AC690V, breaking capacity reaches 120kA under AC500V condition. Widely used in low voltage control cabinets, PV energy storage stations, motor power boxes, UPS systems. Current ratings range from 80A to 250A, models with micro-switch alarm are optional, which can send fault signal once blown for remote monitoring.
Product Parameter
|
Model |
NT1 HRC Fuse link |
|
Utilization Category |
gG (General overload & short-circuit protection for cables & switchgear) |
|
Rated Voltage |
AC500V / AC690V |
|
Breaking Capacity |
AC500V:120kA; AC690V:50kA |
|
Rated Current |
80A,100A,125A,160A,200A,250A |
|
Housing Material |
High temperature flame retardant ceramic |
|
Contact Material |
Tin-plated pure copper (low contact resistance & low temperature rise) |
|
Standard |
IEC/HD 60269-2 |
|
Certifications |
CE,CCC,TUV, RoHS,ISO |
Dimensional Data for NT1 Fuse Link:
Product Qualification
Every finished CE NT1 fuse link passes three strict tests including temperature rise, short-circuit breaking capacity and high-low temperature cycle aging before delivery. All CE NH1 HRC Fuse comes with official CE test reports, which can be directly used for EU customs clearance and project bidding. As high-compatibility replacement component, NT1 fuse equivalent to Bussmann/Mersen shares identical installation dimension without cabinet modification, ideal for imported switchgear renovation and localization replacement for overseas energy storage projects.
Production Process & Quality Control System
Perfect Import Replacement: NT1 fuse equivalent to Bussmann/Mersen, fully matched dimension & melting curve to cut cost
Complete CE Approval: Supported by CE Certified NT1 Fuse Link and CE Marked NT1 HRC Fuse certification for smooth export
Two Optional Versions: Standard type & micro-switch alarm type, fit common distribution and intelligent monitoring systems
Super High Breaking Capacity: Up to 120kA under AC500V, instantly cut short-circuit to protect downstream equipment
High Temp Ceramic Body: Flame retardant & insulated, adapt harsh high humidity environment of outdoor power stations
Plug-in Design: Easy installation & replacement with matching fuse base, simple daily maintenance
Packaging, Shipping & After-sales Service
Fast Stock Delivery: Standard NT1 fuse in permanent stock, orders shipped within 48 hours; customized specifications take 7–10 working days.
Export Support: Complete CE & RoHS certificates supplied
Warranty & Support: 12-month warranty,replacement matching, free samples for bulk order clients.
Customization: Customized current rating, printing logo and package acceptable, customized CE Certified NT1 Fuse Link with micro-switch based on customer drawings.
FAQ
Q1: Can this Breaking Capacity Fuse link directly replace Bussmann and Mersen imported fuses?
A: Absolutely yes, this product is standard NT1 fuse equivalent to Bussmann/Mersen, fully compatible on dimension, installation space and melting characteristic, no cabinet modification needed.
Q2: What is the function of the model with micro-switch alarm?
A: Once the fuse blows due to overload or short circuit, the micro-switch will trigger and send electrical signal to PLC or monitoring system to locate faulty circuit quickly, ideal for intelligent energy storage stations and automatic control cabinets.
Q3: Are all certification documents ready for EU export?
A: Yes, we supply formal CE NT1 Fuse Link, CE test reports and certificates available for every batch. The fuse body is printed with CE logo as CE Marked NT1 HRC Fuse, no customs clearance obstacles.
