Product Introduction

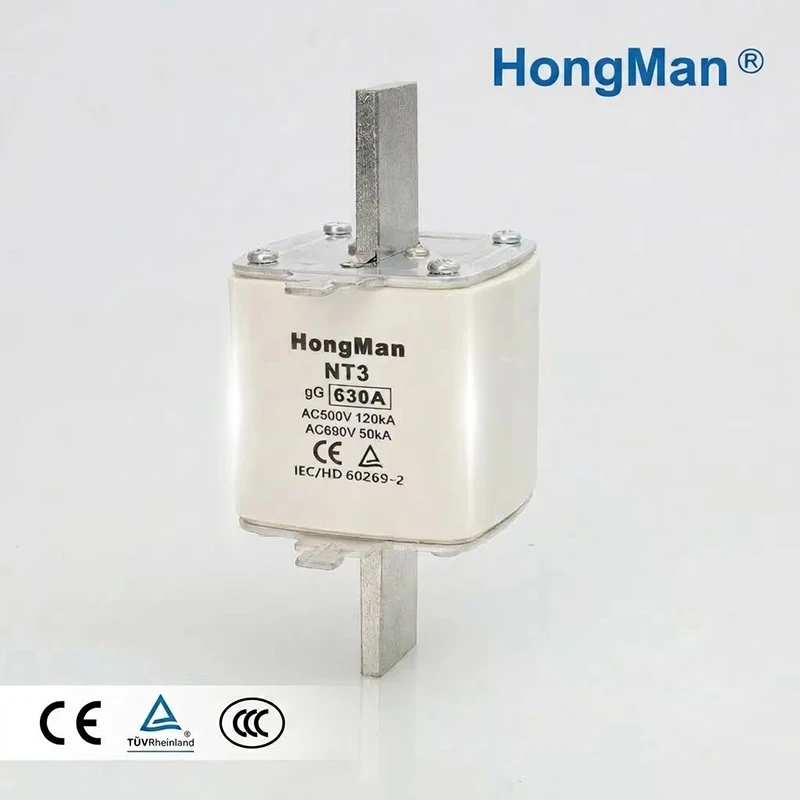

Our NT3 Ceramic Fuse Link High-Performance Industrial Protection NT3 630A Fuse Link is a high breaking capacity knife-type HRC fuse specially designed for industrial low-voltage power distribution. It adopts high-strength heat-resistant ceramic tube to encapsulate copper variable cross-section melt, filled with high-purity quartz sand inside for rapid arc extinction, providing dual protection against overload and short circuit for 630A high-power loads.
Compatible with AC500V/690V low-voltage switchgear, motor control cabinets and photovoltaic energy storage equipment, it complies with IEC60269 and GB/T13539 standards. With a rated breaking capacity up to 120kA, the plug-in blade design features easy installation, ultra-low contact resistance and stable temperature rise during long-term operation.
We have specialized in electrical protection components for over 10 years, with products sold to industrial markets across Europe, America and Southeast Asia. All items pass strict factory inspection, bulk customization is available, and we aim to be your reliable long-term partner from China.
Product Parameter
|
Model |
NT3 Ceramic Fuse Link, NT3 630A Fuse Link |
|
Rated Current |
630A |
|
Rated Voltage |
AC 500V / AC 690V / DC 440V |
|
Utilization Category |
gG (Full-range overload & short-circuit protection) |
|
Rated Breaking Capacity |
120kA AC500V, 50kA AC690V |
|
Tube Material |
High-temperature resistant industrial ceramic |
|
Arc Extinguishing Filler |
High-purity quartz sand |
|
Contact Material |
Tin-plated pure copper |
|
Rated Frequency |
50Hz |
|
Compliance Standard |
IEC 60269-2, GB/T 13539.2 |
|
Operating Ambient Temp |
-5℃ ~ +40℃ |
|
Certifications |
CE, CCC, TUV, RoHS,ISO |
|
Matching Base |
Standard NT3 blade fuse base |

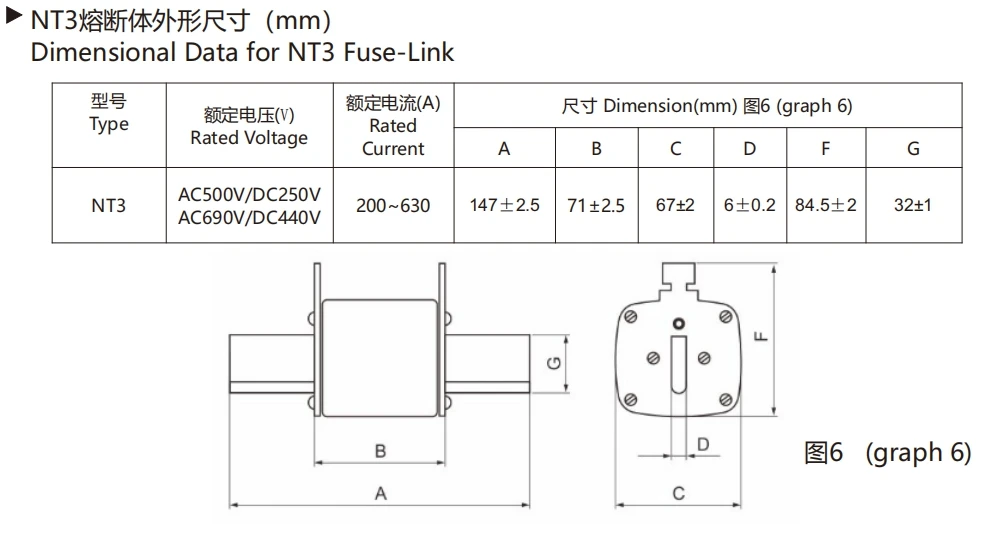

Dimensional Data for NT3 Fuse Link:
Product Qualification
1. Global Certifications: CCC, CE, TUV, RoHS certified to meet export standards for industrial equipment worldwide
2. Wide Operating Condition: Stable operation from -5℃ to 40℃, no performance loss below 2000m altitude, suitable for harsh workshops of metallurgy, chemical and new energy industries
3. Explosion-proof Ceramic Housing: High-density ceramic tube with flame retardant & high temperature resistance, isolating electric arc, strong mechanical structure against vibration and impact
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Inner Packaging: Each fuse is individually packed in an anti-collision plastic case to prevent deformation of copper blade contacts during transportation.
Outer Packaging: Standard export cartons wrapped with moisture-proof films.
A full set of customs clearance documents is available, including CE certificates, test reports, commercial invoices and packing lists.
FAQ
Q1: Will high-temperature workshop shorten fuse service life?
A: The ceramic tube can resist high temperature and run stably under 40℃ long-term. Custom high-temperature resistant improved version is available for environments over 40℃.
Q2: Can we customize current ratings?
A: Yes. NT3 series supports customized melt links from 315A to 630A, melt parameters can be adjusted for special load conditions.
