Product Introduction

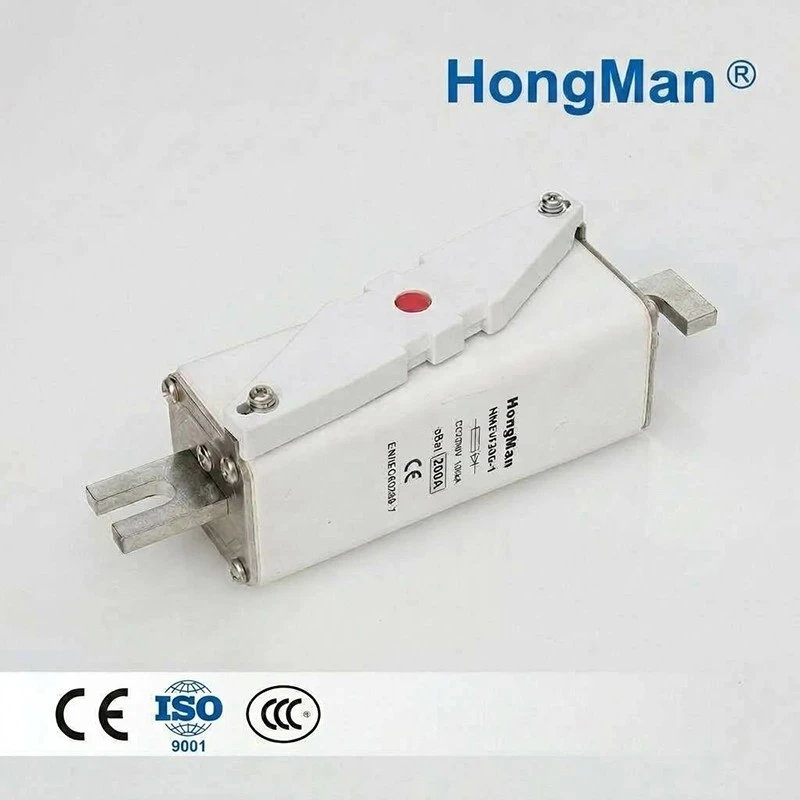

This Blade Ceramic Fuse is a 2000V high-voltage blade fuse developed for harsh DC operating conditions, also named EV Blade Fuse 2000V. Adopting high-purity alumina ceramic housing and high-purity quartz sand arc-extinguishing filler, it perfectly matches high-voltage DC systems including new energy passenger & commercial vehicles, large energy storage power stations and PV DC combiner boxes. It solves defects of traditional low-voltage fuses such as insufficient voltage resistance, easy cracking under high temperature and weak breaking capacity. It can operate stably at -55℃~125℃, cut off short-circuit & overcurrent fault within milliseconds, effectively avoid battery thermal runaway and high-voltage fire hazards, serving as the core safety protection component for 2000V DC platforms.
Product Parameter
|
Model |
DC 2000V Blade Ceramic Fuse |
|
Rated DC Voltage |
DC 2000V |
|
Rated Current Range |
30A~800A Multiple ratings available |
|
Breaking Capacity |
50kA DC2000V |
|
Fusing Characteristic |
aR fast acting, for power semiconductor & power battery protection |
|
Housing Material |
95% high-density alumina ceramic |
|
Fuse Element |
high-purity silver alloy |
|
Arc Extinguishing Medium |
Solidified high-purity quartz sand |
|
Mounting Type |
Blade bolt-on connection |
|
Operating Temperature |
-55℃ ~ +125℃ |
|
Compliance Standards |
ISO8820-8,IEC60269.4,GB31465 |
|
Certifications |
TUV,CE,RoHS, TUV, CE, RoHS, |
Product Qualification
Our full series EV Blade Fuse 2000V high voltage fuses are equipped with complete authoritative certifications and full sets of third-party test reports:
1.Safety certifications: TUV safety, CE EU,
2.Eco certifications: RoHS, REACH halogen-free test reports;
3.Electrical performance test: Full third-party lab tests including breaking capacity, temperature rise, vibration, thermal shock and aging;
4.Production control: Self-owned full production lines including ceramic sintering, fuse element welding, automatic assembly and high voltage testing. Every single fuse passes 100% voltage withstand test before delivery, defect rate lower than 0.03%.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
1.Lead time: 3-7 days for standard stock models, 15-25 days for customized specifications, support small sample orders & mass OEM vehicle matching orders;
2.Protective packaging: Independent anti-static plastic bag + neutral export carton, shockproof & moisture-proof for sea & air shipment, custom color boxes with client LOGO available;
3.Logistics: DHL, Fedex, FCL/LCL sea freight with full tracking service;
4.After-sales guarantee: 12-month warranty, free replacement for non-artificial damage; professional technical support for fuse selection & customized circuit protection solution;
5.Customization: Custom current rating, dimension, terminal type, LOGO printing on housing and packaging for private label OEM.
FAQ
Q1: What's the maximum DC system voltage DC 2000V Blade Ceramic Fuse can fit?
A: This EV Blade Fuse 2000V is rated DC 2000V, recommended operating system voltage ≤1600V with safety margin, do not apply to DC bus over 2000V.
Q2: Is it suitable for energy storage PCS DC side protection?
A: Fully compatible. aR fast acting characteristic precisely protects power semiconductors inside PCS, it's mainstream protection component for 2000V energy storage DC side.
Q3: Do you support OEM private label for vehicle manufacturers?
A: Yes, custom laser brand LOGO & model on fuse housing, custom color boxes to meet OEM & energy storage brand supply demands.
