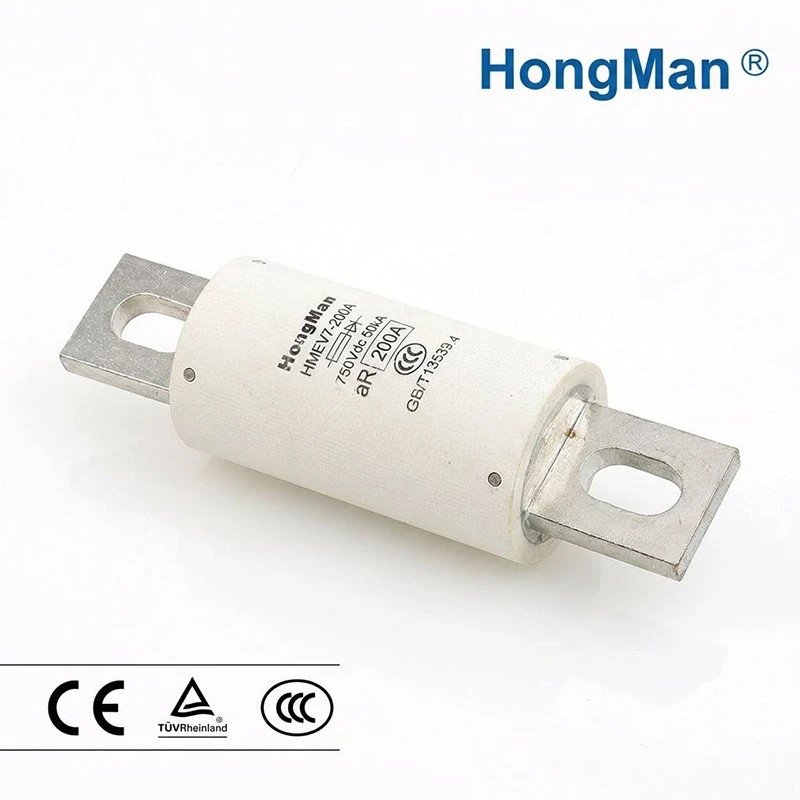

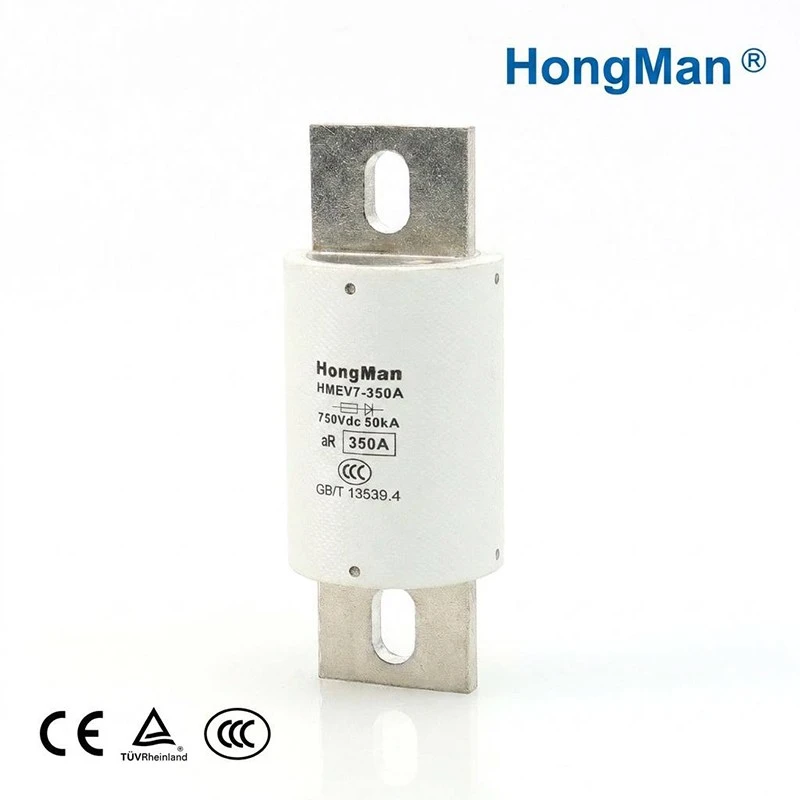

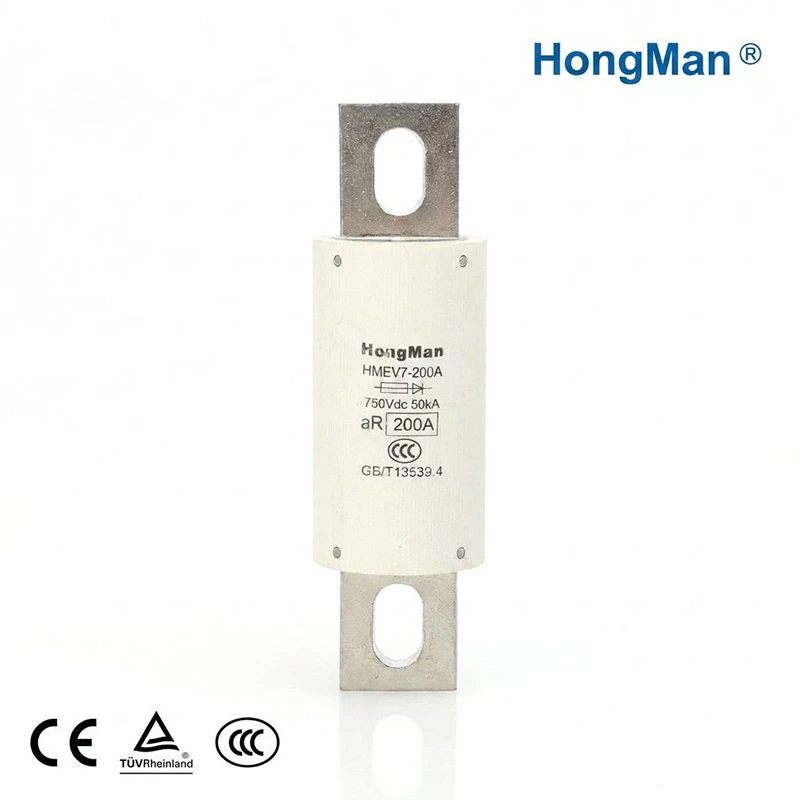

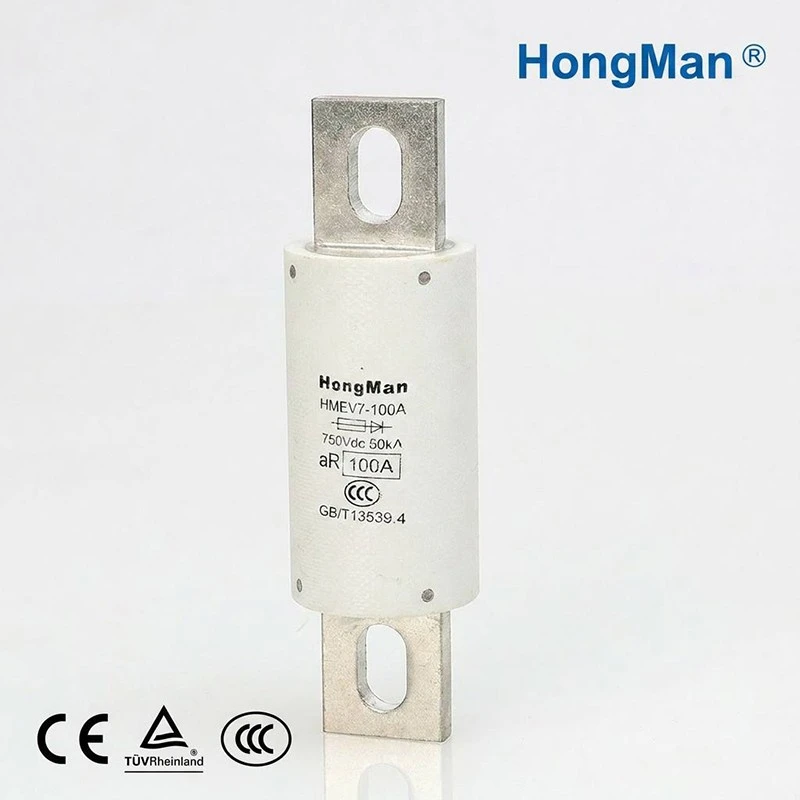

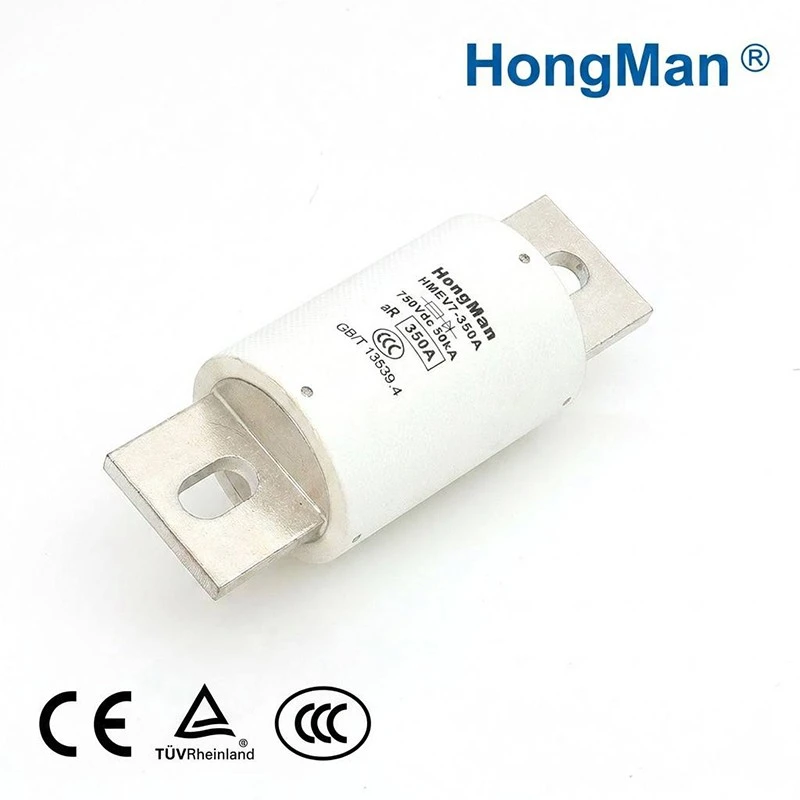

700V DC EV Battery Cell Fuse Link

Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 700v dc ev battery cell fuse link in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap 700v dc ev battery cell fuse link from our factory.

The HongMan HMEV7-series high-performance bolt-on-type fuse is a dedicated DC protective device engineered for new-energy vehicle battery systems, energy-storage battery assemblies and high-voltage DC distribution hardware. Equipped with a sophisticated arc-quenching ceramic housing and accurately calibrated melting-element construction, this component delivers consistent, dependable short-circuit and overcurrent safeguarding for high-amperage DC circuits, while retaining steady operational performance amid prolonged heavy-duty loads and high-voltage operating environments.

Rated for 700 V DC and supporting a maximum DC operating voltage of 750 V, this fuse features a 50 kA rated interrupting capacity. It is capable of tripping instantaneously in the event of violent short-circuit faults, thereby preventing permanent damage to batteries, inverters and power modules. Thanks to its aR ultra-rapid breaking performance, it serves as a well-suited protective option for high-voltage, high-power DC electrical loops.

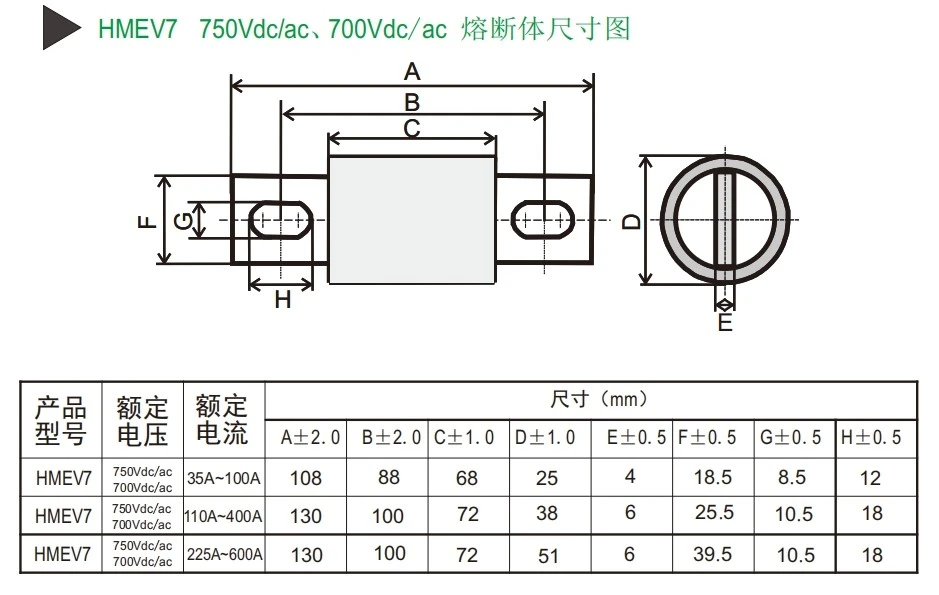

Dimensional Data for HMEV7 Fuse Link:

1.Constructed with high-strength melamine insulating housing, this fuse withstands high temperature, mechanical impact and arc abrasion. It effectively confines internal arc energy upon fusing, removes fire hazards from high-voltage high-current circuits and secures overall power-system operation.

2.Boasting aR ultra-quick interrupting capability, it cuts off fault overcurrent within milliseconds once short-circuit occurs. It fits lithium-ion battery pack protection requirements well and prevents thermal runaway risks, making it a preferred part for cell-level fuse protection solutions.

3.It adopts standard bolt-mount configuration, featuring dual-sided flat copper terminals with oval mounting apertures. This design facilitates wiring and assembly, keeps contact resistance low, minimizes heat buildup during continuous heavy-current conduction, and supports broad compatibility with standard mounting brackets of equivalent specifications.

4.Designed for superior interrupting performance with 50 kA short-circuit breaking rating, the fuse works reliably for high-power energy storage and NEV high-voltage DC circuits. It maintains dependable protection under severe fault scenarios and handles diverse complex operating conditions.

5.Possessing official safety approvals, the product conforms to national low-voltage fuse specifications. It has passed rigorous temperature-rise, breaking-capacity and aging tests, suitable for large-scale commercial-industrial deployment and satisfies certification criteria from major new-energy and energy-storage sectors.

This heavy-duty DC Battery Fuse is widely used in multiple high-voltage and high-current DC scenarios, and is also the core protection component for DC 700V Fuse application solutions in various industries:

• New energy passenger vehicles, commercial EV power battery main circuit protection
• Household & industrial energy storage battery cabinet power protection
• DC charging pile internal high-voltage power loop protection
• Heavy-duty machinery, forklift lithium battery power supply systems
• Solar off-grid DC power distribution and energy storage equipment
• Electric vehicle high-voltage auxiliary power supply system protection
