Product Introduction
This HongMan HMEV5 series high-performance bolted fuse is specially engineered for new energy vehicle power systems, energy storage battery packs and DC power distribution equipment. Adopting advanced arc-extinguishing ceramic shell and precision melt structure, it delivers reliable short-circuit and overcurrent protection for high-current DC circuits, with stable performance under long-term heavy load operation.
Built to meet GB/T13539.4 national standard and certified with CCC, this DC 500V Fuse supports a rated breaking capacity up to 50kA,the current can be customized according to your requirements. capable of cutting off severe short-circuit currents instantly to safeguard batteries, inverters and power modules from irreversible damage. The aR ultra-fast breaking characteristic makes it an ideal protection component for high-power DC power loops.
Product Parameter
|
Brand |
HongMan |
|
Model |
HMEV5 |
|
Rated Current |
35A-600A |
|
Rated Voltage |
DC500V |
|
Breaking Capacity |
50kA |
|
Breaking Class |
aR ultra-fast acting |
|
Executive Standard |
GB/T13539.4 |
|
Installation Type |
Double bolt flange mounting |
|
Terminal Type |
Flat copper with oval mounting holes |
|
Certification |
CCC |
|
Applicable Scenarios |
EV battery packs, energy storage systems, industrial DC power modules |

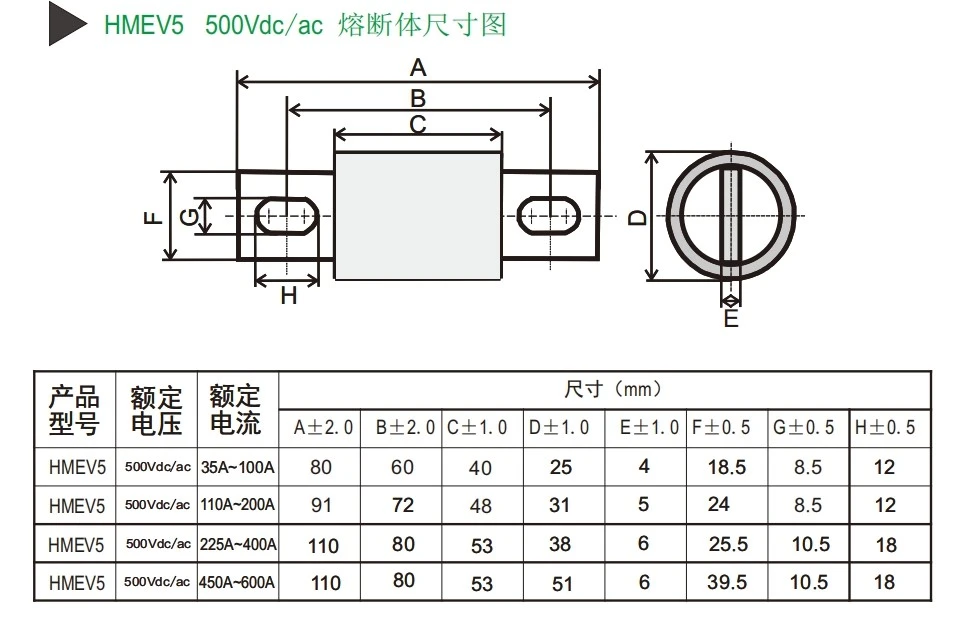

Dimensional Data for HMEV5 Fuse Link:
Product Qualification
High-strength insulating melamine shell
Resistant to high temperatures, impact, and arc erosion. When the molten fuse melts, it can completely contain the internal arc energy, eliminating the fire hazard of large current circuits.
Ultra-fast aR breaking performance
Instantly disconnect overcurrent within milliseconds during short-circuit faults, perfectly match the protection demand of lithium battery packs, avoid thermal runaway hazards.
Standard bolt connection structure
Two-side flat copper terminals with oval mounting holes, convenient wiring installation, low contact resistance, reduce heat generation under long-time large current transmission, widely compatible with 80A Module Fuse series installation brackets.
High breaking capacity design
50kA high short-circuit breaking capacity, fully adapt to high-power energy storage and new energy vehicle high-current DC loops, stable protection performance under extreme fault conditions.
Formal CCC safety certification
Comply with national low-voltage fuse standards, pass strict temperature rise, breaking and aging tests, safe for commercial and industrial mass application.
Wide Application Range
This heavy-duty Battery Fuse is widely used in multiple high-current DC scenarios:
- New energy passenger vehicles, commercial EV power battery main circuit protection
- Household & industrial energy storage battery cabinet power protection
- DC charging pile internal power loop protection
- Heavy-duty machinery, forklift lithium battery power supply systems
- Solar off-grid DC power distribution and energy storage equipment
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
