Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of dc 1500v ceramic fuse in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap dc 1500v ceramic fuse from our factory.
Product Introduction
Model DC 1500V Ceramic Fuse is manufactured in strict accordance with EN/IEC60269-4 standard, rated DC voltage 1500V, rated current 800A with breaking capacity up to 100kA, featuring aR semiconductor protection characteristic to accurately safeguard IGBT, thyristor and other power components. This DC 1500V Ceramic Fuse adopts high-temperature resistant ceramic housing with superior insulation strength and stable heat dissipation, serving as essential safety component for energy storage converters, PV inverters and high-power rectifiers.
Product Parameter
|
Model No. |
HMEVF15P-03 |
|
Rated DC Voltage |
DC 1500V |
|
Rated Current |
800A |
|
Rated Breaking Capacity |
100kA |
|
Utilization Category |
aR(Special protection for semiconductor devices) |
|
Standard Complied |
EN/IEC 60269-4 |
|
Housing Material |
High-temperature resistant ceramics |
|
Certifications |
CE,ISO ,CCC ,RoHS |

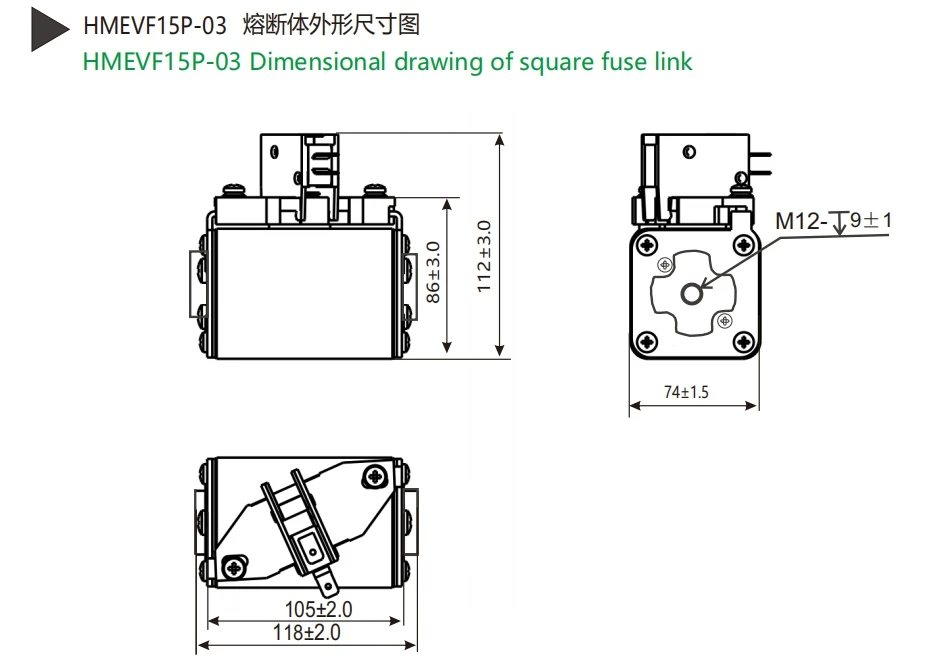

Dimensional Data for HMEVF15P-03:
Product Qualification
1.Integrated Ceramic Housing: Integral high temperature resistant ceramic body delivers excellent high voltage resistance and arc suppression. This DC 1500V Ceramic Fuse prevents shell cracking and arc leakage under extreme overload to maximize system safety.
2.Visual Melting Indicator: After the fuse blows, the built-in red trip indicator light on the top of this EV fuse will immediately illuminate, facilitating maintenance personnel to quickly locate the faulty circuit, thereby reducing downtime and preventing arc leakage in extreme overload situations, and maximizing system safety.
3.Standard Bolt Terminals: Symmetric flat bolt connection terminals ensure stable mounting and low contact resistance, compatible with all standard EU & domestic fuse bases.
4.Independent R&D & Production: We own full capacity for fuse research, mold development and mass production, supporting custom non-standard current & voltage specifications with stable lead time.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
FAQ
Q1: Do your products have a long service life and stable quality?
A: With precise molds and standardized production processes, finished products pass thousands of simulated fatigue tests. Under normal and standard use conditions, the products have extremely low wear, and are not easy to deform, crack or fade for long-term use with consistent stable quality.
Q2: What are your quality advantages compared with cheap similar products on the market?
A: Most low-cost competitors cut inspection procedures, use recycled materials and simplify production steps. We stick to complete inspection processes, brand-new premium raw materials and reinforced thickened craftsmanship. We control quality regardless of production costs, delivering higher cost performance in long-term use and greatly reducing after-sales losses.
Hot Tags: dc 1500v ceramic fuse, China dc 1500v ceramic fuse manufacturers, suppliers
