Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of nt00c ceramic fuse link in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap nt00c ceramic fuse link from our factory.
Product Introduction

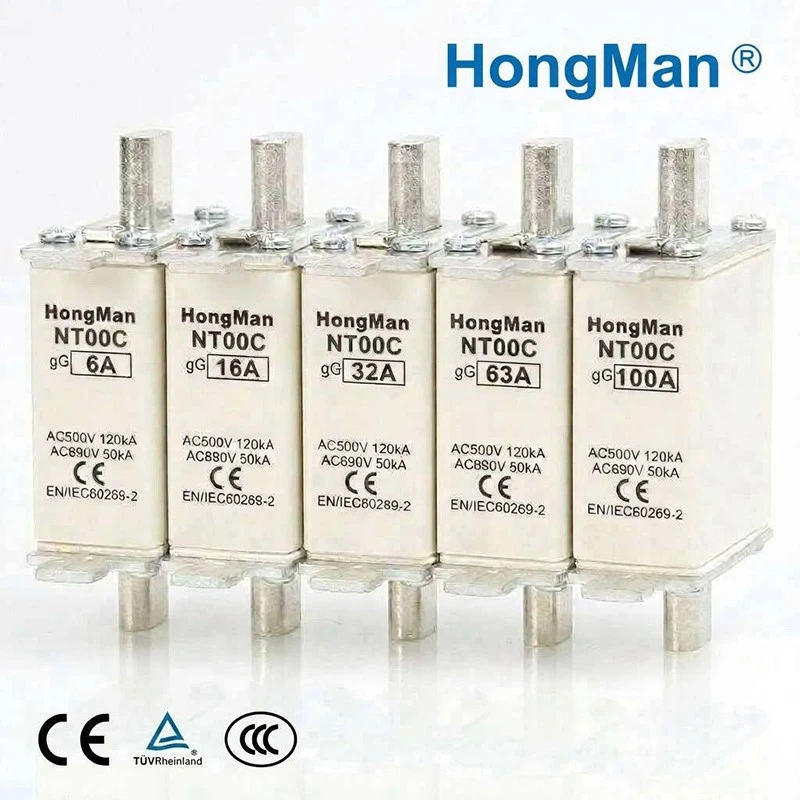

HongMan NT00C 500V fuse link is a general gG class low voltage overcurrent protection component, strictly manufactured according to EN/IEC60269-2 international standard with CE, CCC, TUV, RoHS certification.
1.Standard gG characteristic: NT00C 500V fuse link Full-range protection for cable, wire distribution and general electrical equipment, can provide short-circuit and overload dual protection.
2.Wide voltage application: Rated AC500V breaking capacity up to 120kA; AC690V breaking capacity 50kA, suitable for most European low-voltage power distribution cabinets.
3.High-strength ceramic housing: This low voltage fuse link High temperature resistant, insulation stable, anti-explosion internal filling quartz sand to extinguish arc quickly when fault occurs.
4.Thick pure copper knife terminals: NT00C HRC fuse good electrical conductivity, low contact resistance, stable current transmission under long-term 100A rated load, not easy to heat up.
Product Parameter
|
Product Model |
NT00C |
|
Protection Class |
gG (General Purpose) |
|
Rated Current |
100A |
|
Standard Execution |
EN/IEC60269-2 |
|
Certification |
CE CCC RoHS TUV |
|
Rated Voltage AC 500V |
Breaking Capacity 120kA |
|
Rated Voltage AC 690V |
Breaking Capacity 50kA |
|
Housing Material |
High temperature resistant ceramic |
|
Terminal Material |
Copper plated with copper and tin |
|
Arc Extinguishing Medium |
Quartz sand |
|
Matching Accessory |
NT00C fuse base |
|
Application Scene |
Low voltage distribution cabinet, wiring box, motor circuit protection |
|
Storage Temperature |
-20℃ ~ +70℃ |
Dimensional Data for NT00C Fuse Link:
Product Qualification
Product Advantage
Ceramic Shell Forming: The ceramic housing of the NT00C Fuse Link is formed through high-temperature sintering to deliver reliable insulation and explosion-proof performance.
Copper Contact Machining Integrally stamped thickened solid copper blades are electroplated with copper-tin alloy for anti-oxidation, effectively reducing contact resistance.
Low Voltage Fuse Link Element Assembly: Precision fuse strips are fitted with high-purity quartz sand (99% silicon content) to achieve rapid arc extinction.
Finished Product Testing: Every single unit undergoes individual testing for breaking capacity, temperature rise and overload fusing performance.
Aging Sampling Inspection: Long-term operation under rated current is simulated to eliminate potential overheating risks.
Full-process traceable quality control ensures consistent performance of every NT00C HRC Fuse.
Package & Transportation
Inner Packaging: Each NT00C Fuse Link is individually packed in an anti-collision plastic case to prevent deformation of copper blade contacts during transportation.
Outer Packaging: Standard export cartons wrapped with moisture-proof films.
A full set of customs clearance documents is available, including CE certificates, test reports, commercial invoices and packing lists.
FAQ
Q1: What does gG stand for? Is this fuse suitable for general power distribution circuit?
A: gG is general-purpose fuse characteristic, it can protect both overload and short-circuit of wires, cables and common electrical equipment, widely used in most low voltage distribution systems.
Q2: Can this NT00C 500V Fuse Link work under AC690V voltage?
A: Yes, its breaking capacity is 50kA under AC690V, fully compliant with European 690V low voltage power distribution standard
Q3: Can I order different current ratings of NT00C HRC fuse link?
A: Yes, we supply full range NT00C gG fuses: 16A, 32A, 63A, 80A, 100A,160A mixed sample order is acceptable.
Q4: Do you have matching fuse holder for NT00C series?
A: Yes, we have plastic and copper base for NT00C, can sell together with fuse links as a set.
Q5: What is the production lead time for bulk orders?
A: Standard stock NT00C fuse link can be delivered within 3-7 working days; customized current specifications take 10-15 working days after deposit.
