Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of nt00 hrc fuse link in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap nt00 hrc fuse link from our factory.
Product Introduction
This NH00 HRC Switch Disconnector Fuse Link is specially designed for low voltage power distribution cabinet, motor control box and switch disconnector equipment.
1. High-strength white ceramic shell, high temperature resistance, insulation performance far exceeds industry standard;
2. Filling high-purity quartz sand inside, excellent arc extinguishing ability, maximum breaking capacity up to 120kA at 500V AC, 50kA at 690V AC;
3. Multiple usage categories available: gG for cable protection, aM for motor overload protection, aR for semiconductor short-circuit protection;
4. Built-in visible blown indicator, maintenance staff can quickly judge fuse failure without power detection;
5. Standard DIN 43620 & IEC 60269 size Switch Disconnector Fuse Link, perfectly compatible with all mainstream NT00 fuse bases and switch disconnectors on the market;
Product Parameter
|
Model |
NT00 HRC Fuse Link |
|
Rated Voltage |
AC 500V / 690V |
|
Rated Current Range |
10A-160A |
|
Breaking Capacity |
120kA(500V AC) / 50kA(690V AC) |
|
Application Class |
gG, aM, aR |
|
Executive Standard |
IEC 60269,ISO, CE, RoHS, CCC |
|
Shell Material |
High-temperature resistant ceramic |
|
Contact Material |
Tin-plated pure copper |
|
Matching Equipment |
NT00 fuse base, low voltage switch disconnector |
|
Working Temperature |
-30℃ ~ +70℃ |

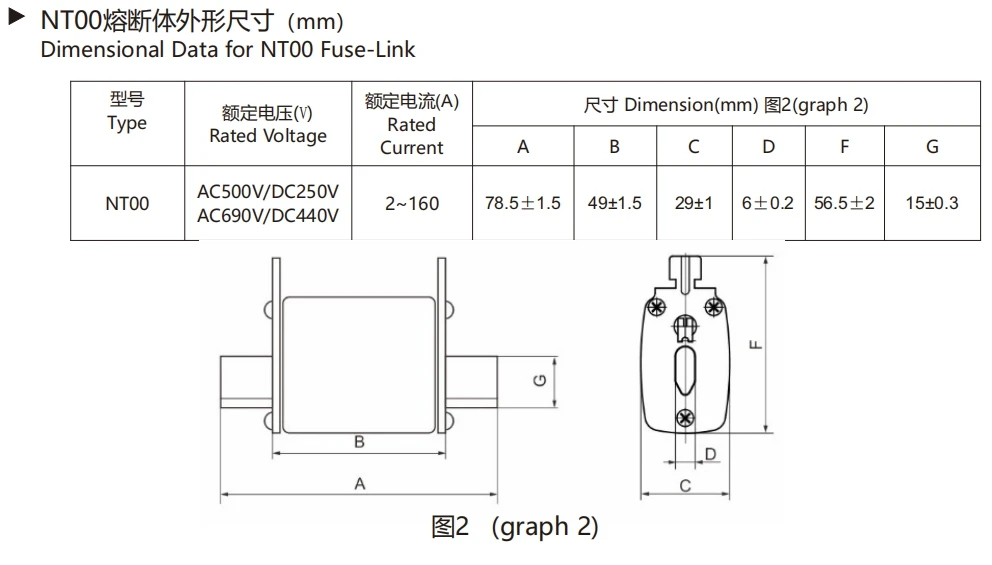

Dimensional Data for NT00 Fuse Link:
Product Qualification
Our NT00 fuse link 500V 690V AC has passed full international electrical safety certification, including CE, RoHS, CCC, IEC test report.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
We keep large stock of NT00 Fuse Link for Switch Disconnector for fast delivery.with professional packaging to prevent ceramic breakage during transit.
1.Pre-sales: Free technical parameter matching suggestion according to your switch disconnector model, provide CAD dimension drawing and test report;
2.In-sale: Production progress real-time photo/video update, support customized logo & package;
FAQ
Q1: Is the ceramic shell resistant to high temperature?
A: Adopt industrial high-alumina ceramic, no cracking under long-time 120℃ working temperature.
Q2: Can you provide CE certification document for customs clearance?
A: Yes, we can offer CE, RoHS, IEC test report and factory qualification certificate freely.
Q3: What voltage does NT00 HRC Fuse support?
A: Our standard NT00 fuse link supports AC 500V and 690V, matched for most low voltage switch disconnector.
