Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of 1500v dc 32a 10x65mm pv fuse link in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap 1500v dc 32a 10x65mm pv fuse link from our factory.
Product Introduction

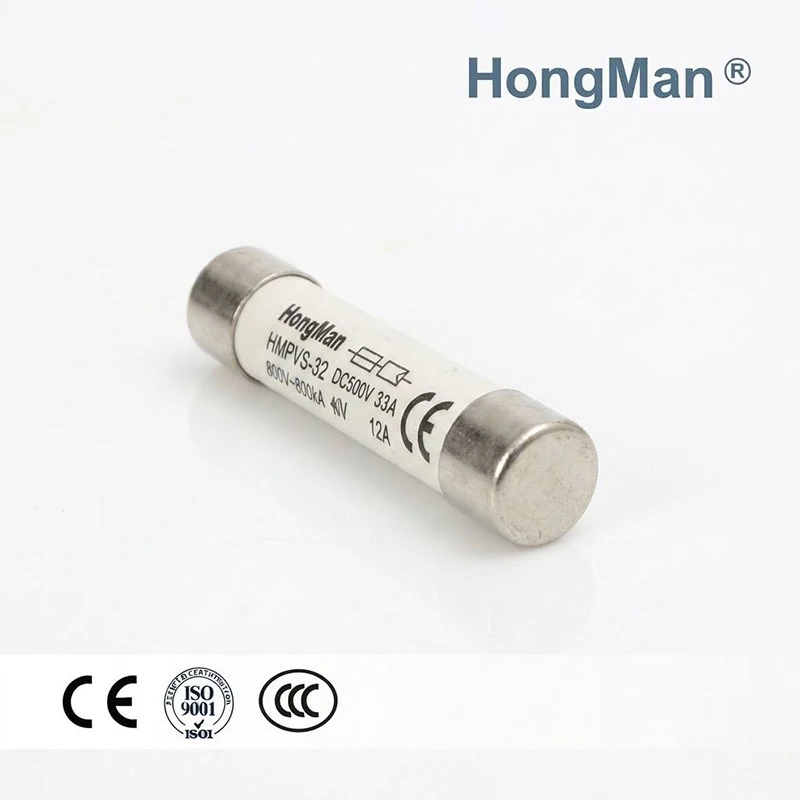

The 14x65mm PVS 32A PV Fuse Link is engineered with unified 14×65 standardized outer size and a highly sensitive built-in mechanical pop-out trip indicator, perfectly compatible with matching DIN rail PV fuse holders for direct plug-and-fit assembly without auxiliary tools. Specially developed for 1500V high-voltage DC solar string loops, it serves as a reliable upgrade protection component for ground solar farm EPC contractors, rooftop distributed PV integrators and lithium energy storage equipment makers pursuing elevated circuit safety standards.
Product Parameter
|
Item |
Professional Specification Data |
|
Full Model Name |
14x65mm PVS 32A Trip Indicator PV Fuse Link |
|
Overall Dimension |
14mm Diameter × 65mm Length (Standard 14x65mm Solar Fuse Size) |
|
Matching Holder |
Special DIN rail PVS fuse base for 14×65 cylindrical fuses |
|
Utilization Category |
gPV (Exclusive overload & short-circuit protection for PV DC strings) |
|
Rated DC Voltage |
1500V DC (Compatible with 1000V low-voltage solar systems) |
|
Rated Breaking Capacity |
DC 1500V: 33kA |
|
Rated Current |
32A (Standard PVS 32A Fuse Specification) |
|
Complete Current Series In Stock |
10A / 15A / 20A / 25A / 32A |
|
Arc Extinguishing Medium |
99% high silica quartz sand, customized for long DC arc suppression |
|
Melt Material |
Precision pure copper fuse strip, low power loss & stable DC conduction |
|
Indicator Feature |
Built-in elastic pop-up mechanical marker, full fuse blowing indication function |
|
Executive Standard |
IEC/HD 60269-6, GB/T 13539.6 PV dedicated standard |
|
Global Certifications |
CE, ISO9001, RoHS environmental compliance certificate |
|
Installation Method |
Standard 35mm DIN rail plug-and-play quick replacement |
|
Core Application Scenarios |
1500V centralized solar power stations, rooftop PV string combiner boxes, off-grid photovoltaic systems, lithium battery energy storage DC cabinets |
Product Advantage
1. Enhanced 1500V DC High-Voltage Insulation Safety, Avoid DC Avalanche Faults
Different from ordinary solar fuses with basic insulation performance, this 1500V DC 32A Fuse adopts upgraded double-layer insulated ceramic structure with redundant high-voltage withstand design, specially targeting the severe DC avalanche and voltage breakdown risks of 1500V high-voltage photovoltaic circuits. This 10x65mm Solar Fuse maintains stable insulation performance under long-term overvoltage and harsh weather-induced voltage fluctuations, effectively preventing creepage, breakdown and accidental conduction failures. With strict gPV DC photovoltaic safety standards, the 1500V DC 32A Fuse provides reliable high-voltage isolation protection for distributed PV and energy storage DC systems, solving the core safety pain point of high-voltage leakage in traditional fuse links.
2. Precision Adaptive DC Protection, Prevent False Operation and Missing Protection Risks
This 10x65mm Solar Fuse features professionally calibrated DC-specific melt curve, which is fully adapted to the irregular fluctuating current characteristics of solar modules. It perfectly avoids two major safety hazards of conventional fuses: delayed breaking under minor overload and accidental fusing caused by normal DC surge. The accurate and consistent protection threshold of the 1500V DC 32A Fuse ensures targeted response to real short-circuit and overload faults, neither causing unnecessary system shutdown nor missing hidden circuit faults. It delivers highly reliable active safety protection for long-term unattended operation of outdoor PV stations.
3. Closed Anti-Spread Safety Structure, Realize Zero Secondary Fault Diffusion
Optimized with an all-round closed arc-isolating cavity structure, this 10x65mm Solar Fuse completely confines high-temperature arcs and thermal energy generated during DC fault breaking inside the fuse body. It effectively prevents arc diffusion, high-temperature particle splashing and peripheral component burning inside compact DC combiner boxes. As a high-safety upgraded solution, the 1500V DC 32A Fuse controls faults within a single PV string, avoiding cascading failures of the entire DC circuit. This localized fault isolation capability greatly improves the overall system safety and operational stability of 1500V DC photovoltaic power stations.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Standard Export Packaging: Fuse link is placed inside a separate inner box, then packed in reinforced shockproof outer export carton for ceramic component protection
Professional After-Sales Service: Complete CE, RoHS official test reports provided for customs clearance and overseas project bidding; 1-year full quality warranty for all RT18-125 fuse links, free electrical selection technical guide for Low Voltage Fuse and PV Fuse system matching
FAQ
Q1: Can the PVS 32A Fuse retrofit old 1000V PV combiner boxes?
A1: Yes. This 14x65mm Solar Fuse shares unified 14×65 dimension with traditional 1000V PV fuses, interchangeable without replacing DIN holders, compatible with both 1000V and 1500V DC PV strings.
Q2: What is the DC breaking capacity of the 1500V DC 32A Fuse?
A2: Rated breaking capacity hits 33kA at 1500V DC, fully compliant with IEC 60269-6 PV safety standards to prevent fire and equipment damage during short-circuit faults.
Q3: Can we provide customized printing for bulk orders of PVS 32A Fuse?
A3: Custom logo, model and parameter printing is available for large-volume orders of the 1500V DC 32A Fuse. We support batch personalized marking to meet brand and project identification demands.
