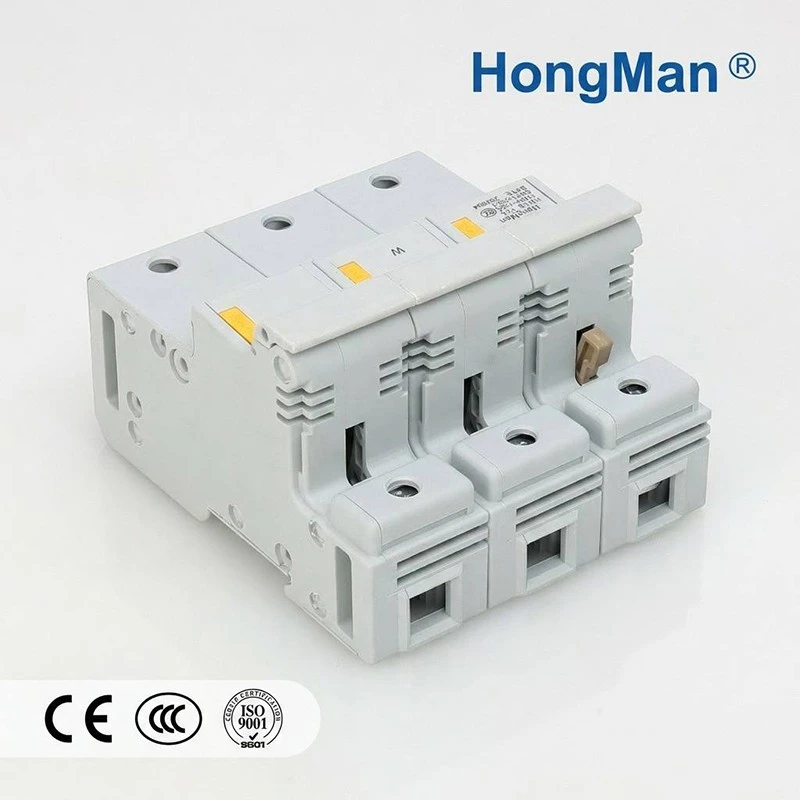

Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of rt18-125 fuse base ac 1140v in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap rt18-125 fuse base ac 1140v from our factory.
Product Introduction
This series of fuse bases is a new generation of intelligent power distribution protective component. It integrates visual status indication, automatic fault pop-up tripping and remote data transmission monitoring functions. Optimized for the industry pain points of traditional fuses such as invisible fault status, delayed feedback and cumbersome troubleshooting, this product features high safety and intelligent operation, widely applied in industrial power distribution, computer rooms, buildings and automatic equipment power systems.
Product Parameter
|
Number of Poles |
3 Poles |
|
Mounting Type |
Standard DIN Rail Mount |
|
Fuse Link Compatible |
22×58mm Cylindrical PV Fuse Link |
|
Rated DC Voltage |
DC 1000V |
|
Rated AC Voltage |
AC 1140V |
|
Rated Current |
0.5A-125A |
|
Breaking Capacity |
20kA |
|
Housing Material |
PA66 Flame Retardant Plastic, UL94 V0 |
|
Operating Temp |
-40℃ ~ +85℃ |
|
Protection Grade |
IP20 (For Indoor Distribution Box) |
|
Application Scenarios |
Residential PV, Commercial & Industrial PV Combiner Box, Inverter DC Side |
|
Certifications |
CE, RoHS, CCC,ISO |
Dimensional Data for NT000 Fuse Link:
Product Qualification
1.Flame-retardant insulated housing
PA66 high-temperature resistant material, UL94 V0 flame retardant grade, weather & aging resistant for outdoor use
2.Visual Status Indication, Instant Fault Recognition
Equipped with a visual open/closed position indicator, the working and tripping status can be clearly identified without disassembly or testing instruments. On-site staff can quickly check circuit conditions. Obvious physical state changes occur after fuse blowing, greatly improving fault recognition efficiency.
3.Real-time Remote Fault Transmission, Realize Intelligent O&M
The device supports real-time remote fault data transmission to the background monitoring system. The pop-up action triggers synchronous data upload, enabling the background to accurately capture fault locations, record fault time and generate alarms. It completely changes the traditional manual inspection mode and realizes early warning, remote monitoring and accurate fault positioning.
4.Reduce O&M Costs and Downtime
With background intelligent monitoring, maintenance personnel can directly locate faults without full-line inspection, greatly shortening troubleshooting and repair time. It effectively reduces equipment downtime, production losses and labor costs, adapting to modern unattended and minimally attended power distribution scenarios.
四.Application Scenarios
Combiner boxes for residential distributed solar PV systems
01
Power distribution cabinets for commercial & industrial ground-mounted PV power stations
02
Overload protection for DC input side of PV inverters
03
DC distribution protection circuit of energy storage battery packs
04
Internal power distribution unit of off-grid PV energy storage all-in-one machines
05
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
