Zhejiang Hongman Electric Technology Co., Ltd. is one of the most reliable manufacturers and suppliers of nh0 high breaking capacity fuse in China. We are committed to providing high quality customized products made in China with competitive price. Welcome to wholesale bulk cheap nh0 high breaking capacity fuse from our factory.
Product Introduction

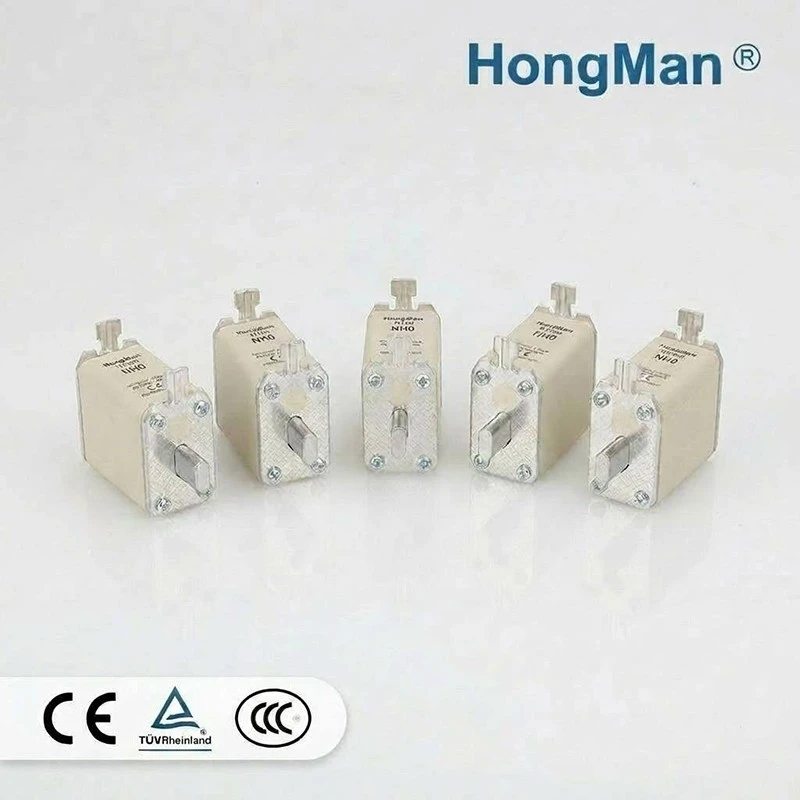

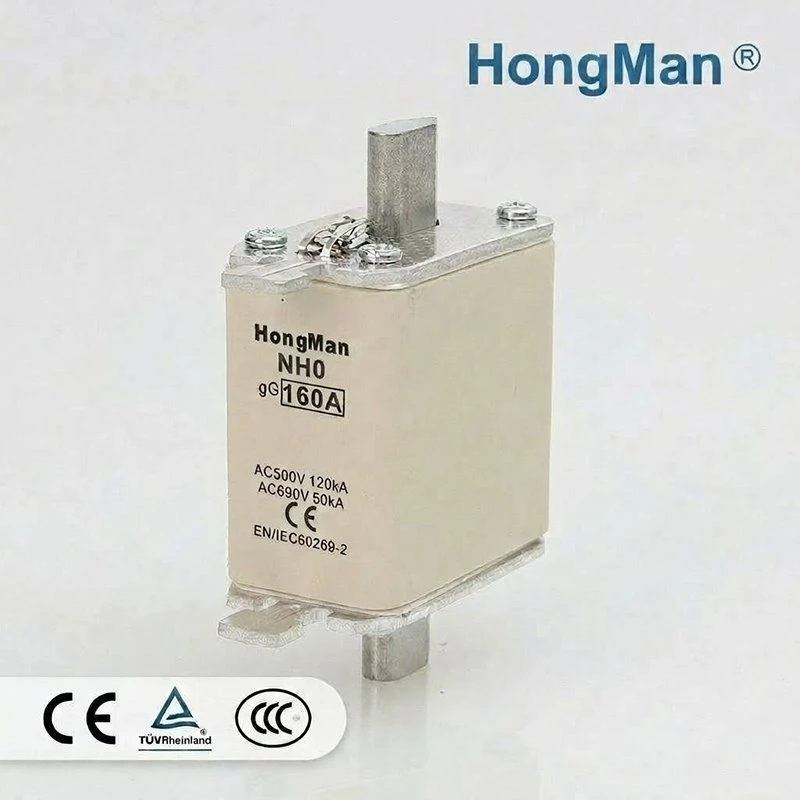

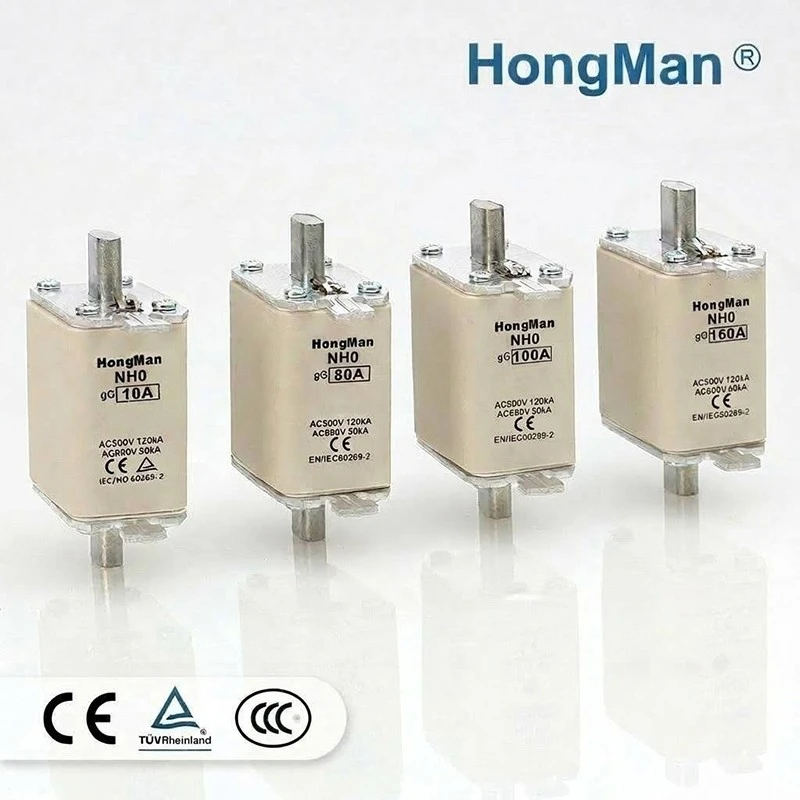

The NH0 High breaking capacity fuse is user-friendly and maintenance-free, making it ideal for industrial electricians and system integrators looking to elevate the safety and stability of low-voltage power distribution systems. In addition, it features a variety of advanced and state-of-the-art features, including rapid arc extinguishing technology, precision alloy melt design and high-insulation ceramic construction, which help ensure unparalleled short-circuit resistance and long-lasting circuit protection performance.
Product Parameter
|
Item |
Specification |
|
Model |
NH0 Single Visible Indicator Ceramic HRC Knife Blade Fuse Link |
|
Utilization Category |
gG (General dual protection for overload & short circuit of medium industrial cables and switchgear) |
|
Rated Voltage |
AC 400V/415V/500V/690V, DC80V/220V/440V |
|
Breaking Capacity |
AC500V:120kA; AC690V:100kA; DC440V:100kA |
|
Available Current Range |
16A ~ 160A (complete industrial specs:16A,32A,63A,100A,125A,160A) |
|
Housing Material |
High temperature flame retardant integrated white ceramic insulated body |
|
Arc Extinguishing Medium |
High purity quartz sand (silicon content ≥99%) |
|
Contact Material |
Thickened tin-plated solid copper knife blade, anti-oxidation & low temperature rise under continuous load |
|
Indicator Feature |
Single front pop-up visual blown indicator, obvious red mark exposed after fusing |
|
Executive Standard |
IEC/HD 60269-2, DIN43620, GB13539.1 |
|
Certifications |
CE, CCC, TUV, ISO9001, RoHS environmental certification |
|
Matching Base |
Special dedicated NH0 knife blade fuse base |
|
Application |
Medium industrial low voltage switchgear, inverter control boxes, distributed PV energy storage stations, UPS, medium-power motor & drive protection |
Product Advantage
Batch traceability full lifecycle quality management
Every batch of NH0 high breaking capacity fuse links has exclusive production batch number, raw material batch record and finished test report. All production data can be tracked from raw ceramic blanks to finished delivery. Once abnormal feedback appears in customer application, we can quickly locate production links and optimize process parameters, effectively avoid mass quality risks for engineering projects.
Tailored for industrial low-voltage power systems, this Low Voltage NH Fuse Link adopts upgraded internal structural optimization to withstand extreme current surges in complex working conditions. As a professional High breaking capacity fuse link, it delivers ultra-fast fault cutoff performance to instantly isolate overload and short-circuit risks. Rigorously manufactured per IEC and DIN standards, the Low Voltage NH Fuse Link boasts stable temperature rise and strong anti-aging ability for long-duration heavy-load operation. Engineered for industrial safety protection, this High breaking capacity fuse link provides reliable, high-efficiency power protection for automation equipment, photovoltaic systems and factory power distribution cabinets, achieving superior system stability and operational security.
Production Process & Quality Control System
Packaging, Shipping & After-sales Service
Inner Packaging: Each fuse is individually packed in an anti-collision plastic case to prevent deformation of copper blade contacts during transportation.
Outer Packaging: Standard export cartons wrapped with moisture-proof films.
A full set of customs clearance documents is available, including CE certificates, test reports, commercial invoices and packing lists.
FAQ
Q1: Can NH0 fuse link be used in both AC690V industrial distribution and DC440V energy storage battery circuits?
A1: Yes, this NH0 fuse supports wide voltage coverage of AC400~690V and DC80~440V. Its high breaking capacity can handle both AC industrial short-circuit current and DC energy storage surge current, widely applicable for hybrid AC-DC new energy equipment.
Q2: What is the maximum continuous operating ambient temperature of NH0 high breaking capacity fuse?
A2: The normal operating temperature range is -25℃ ~ +70℃. If installed in fully sealed inverter cabinets with poor heat dissipation, we suggest reducing the actual operating current by 10% to avoid premature aging of the internal melt strip.
Q3: What is the difference between NT0 and NH0 fuse, can they replace each other?
A3: NT0 and NH0 adopt identical DIN installation dimensions and internal protection performance, which are completely interchangeable on the same fuse base. The naming difference only comes from different regional industry naming habits.
